WJLS-FLD165A “FENG CAI” SERIES SMART BOLLARD LAMP

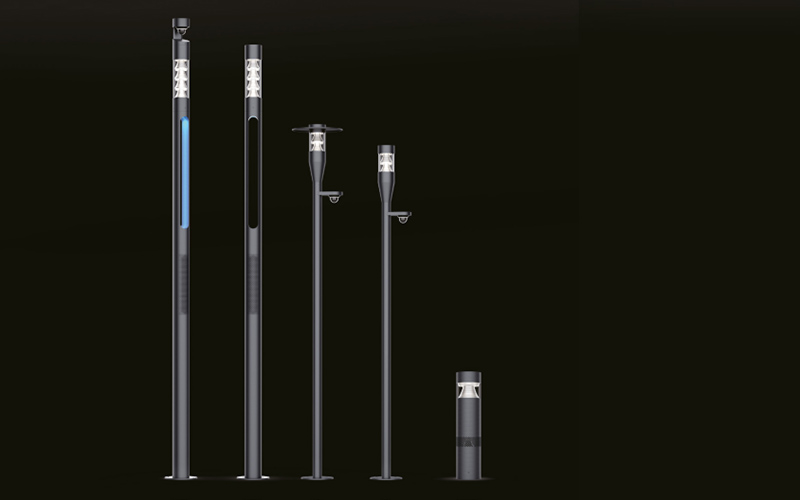

Smart Lighting
● Adaptive color temperature or brightness changes based on environmental data
Product Features
● Application

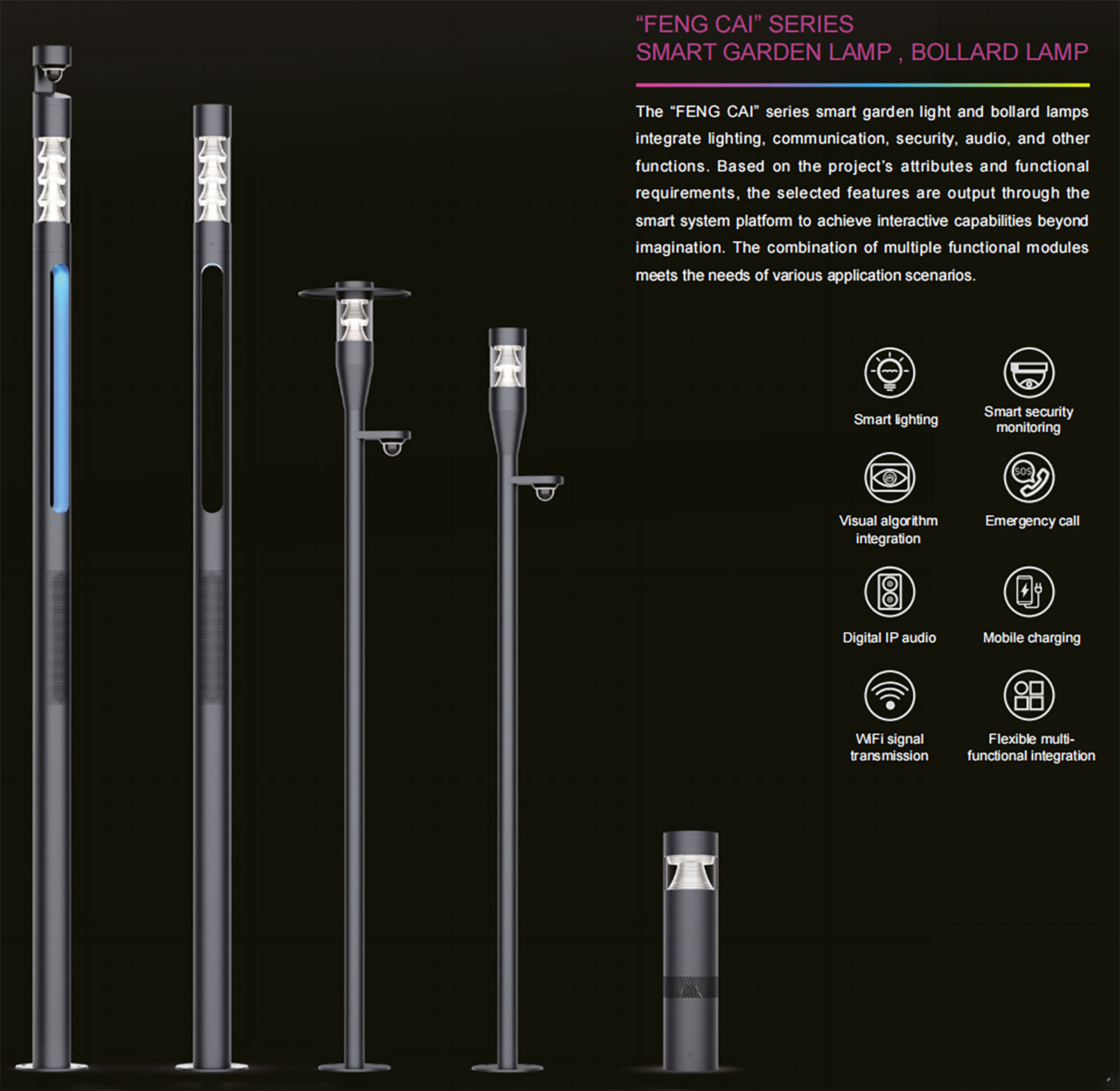

The "FENG CAI" series basic smart bollard lamp combines wireless phone charging, digital IP audio, and smart illumination into a single integrated smart lamp that may be used in parks, business districts, commercial streets, and smart communities in upscale outdoor spaces for the development of smart cities.
● Main Materials
The lamp head construction is built of stainless steel and aluminum alloy, and it is finished with a premium AkzoNobel silver-gray coating that lasts for five years. The lamp body is mostly composed of metal tubing;
304 stainless steel fasteners are used. High-strength PC casting with surface electroplating is used for the integrated optical components.High-transparency, anti-aging PC tube with superior light transmittance and robust self-cleaning.
● Features of the Lamp
LED light sources provide exceptional anti-glare performance by directing light to the ground while avoiding direct glare thanks to integrated 3D multidimensional prism reflectors.The integrated optical elements include smoke-colored semi-transparent facets and 3D multidimensional prisms. Wireless phone charging is optional and can be set up to suit the practical requirements of the application site. All light is subjected to secondary diffuse reflection, which serves as both an artistic ornamental accent and an anti-glare control.
When necessary, the built-in intelligent control module can be connected to the central control system to enable color temperature and brightness adjustments under energy-saving modes.
/Lamp post audio (optional): Depending on the situation, the lamp can incorporate IP digital audio with environment-based adaptive volume control.

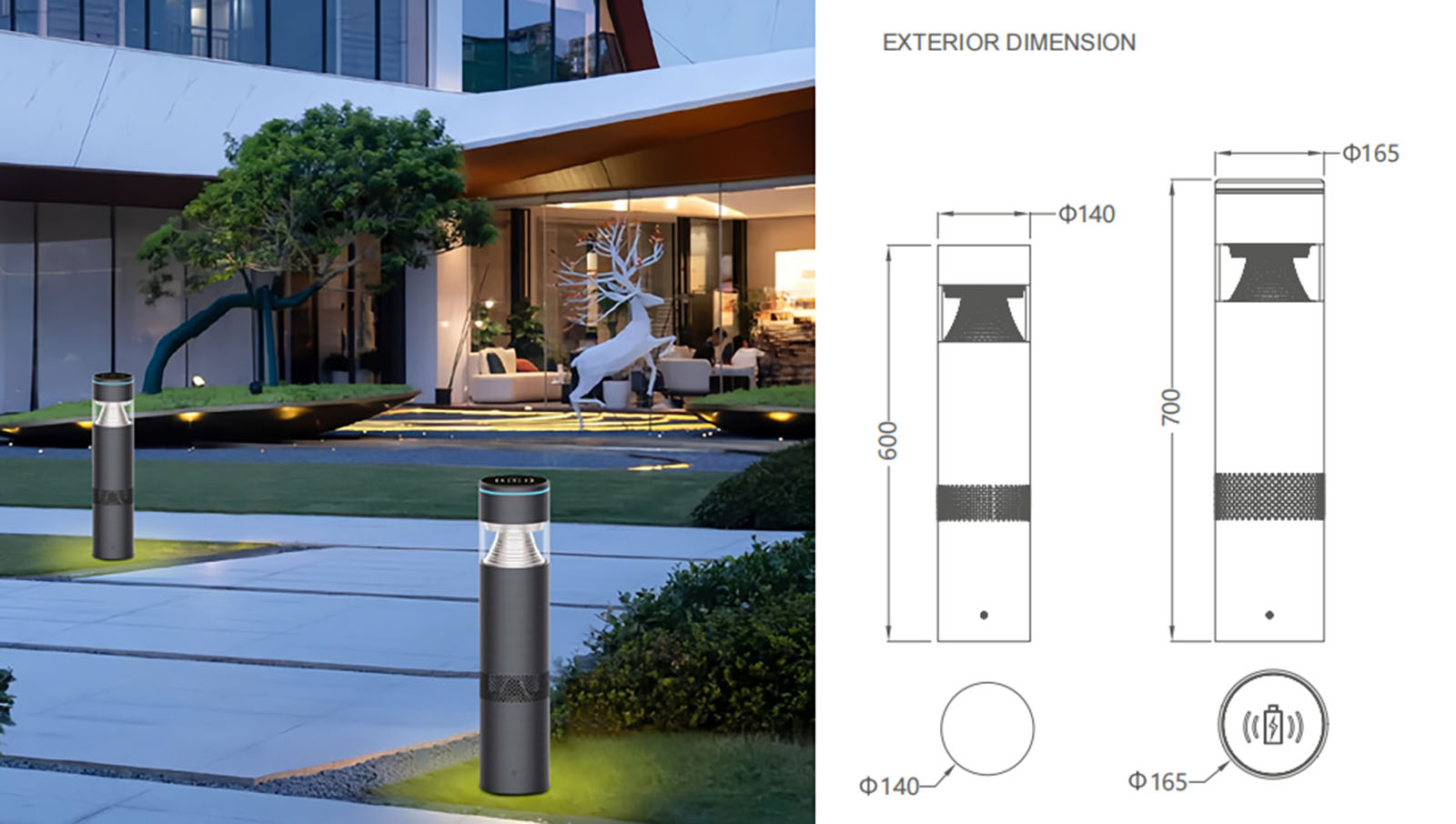

Installation technique: flange base mounting with embedded foundation.
|
Color temperature |
Single color temperature 2200K-5000K |
|
Color rendering index |
Ra ≥80 |
|
Smart audio |
Built-in digital audio with amplifier, peak power: 20WSpeaker unit: 1*4 inch full-range (see page 16: network lP audio)Frequency range:120-18000HzSensitivity: 91dB+3dBCoverage:20-meter radius, 360° angleTransmission: Ethernet RJ45/10m/100m |
|
Intelligent control |
Built-in intelligent controller, integrated control of lighting and audio |
|
Control method |
Ethernet network control, connected to the main system via fiberoptic or Cat5e cable |
|
Phone charging |
(Optional) wireless charging function with charging ambient light,output 20W5W, automatic recognition |
|
Protection level |
IP65 |
|
Operating voltage |
AC220V |
|
Power |
Lighting 12w, audio 20w |
