WJSL-AD219B “Lang Chao” Series Combined Smart Pole Light

Frequency range: 120-18000Hz. Sensitivity: 91dB±3dB.

Speaker units: 4 4-inch full-range + 1×0.5-inch tweeter. Coverage range: 60m, 50°angle.

Amplifer: built-in, peak power 80W. Transmission: Ethernet RJ45/10m/100m.

No external amplifer needed; broadcasting, music playback, and zone-specifc playback are achieved via Ethernet cable.

● Multi-functional options (optional): the pole body can be equipped with either a media interactive display module or an EV charging module.

● Control: built-in Intelligent control box, Ethernet network control, connected to the main system via fber or Cat5e cable.

● Operating voltage: AC220V

● Protection rating: IP65

● Installation: buried foundation with fange base mounting.

Send email to us

Product Detail

Product Tags

PRODUCT FEATURES

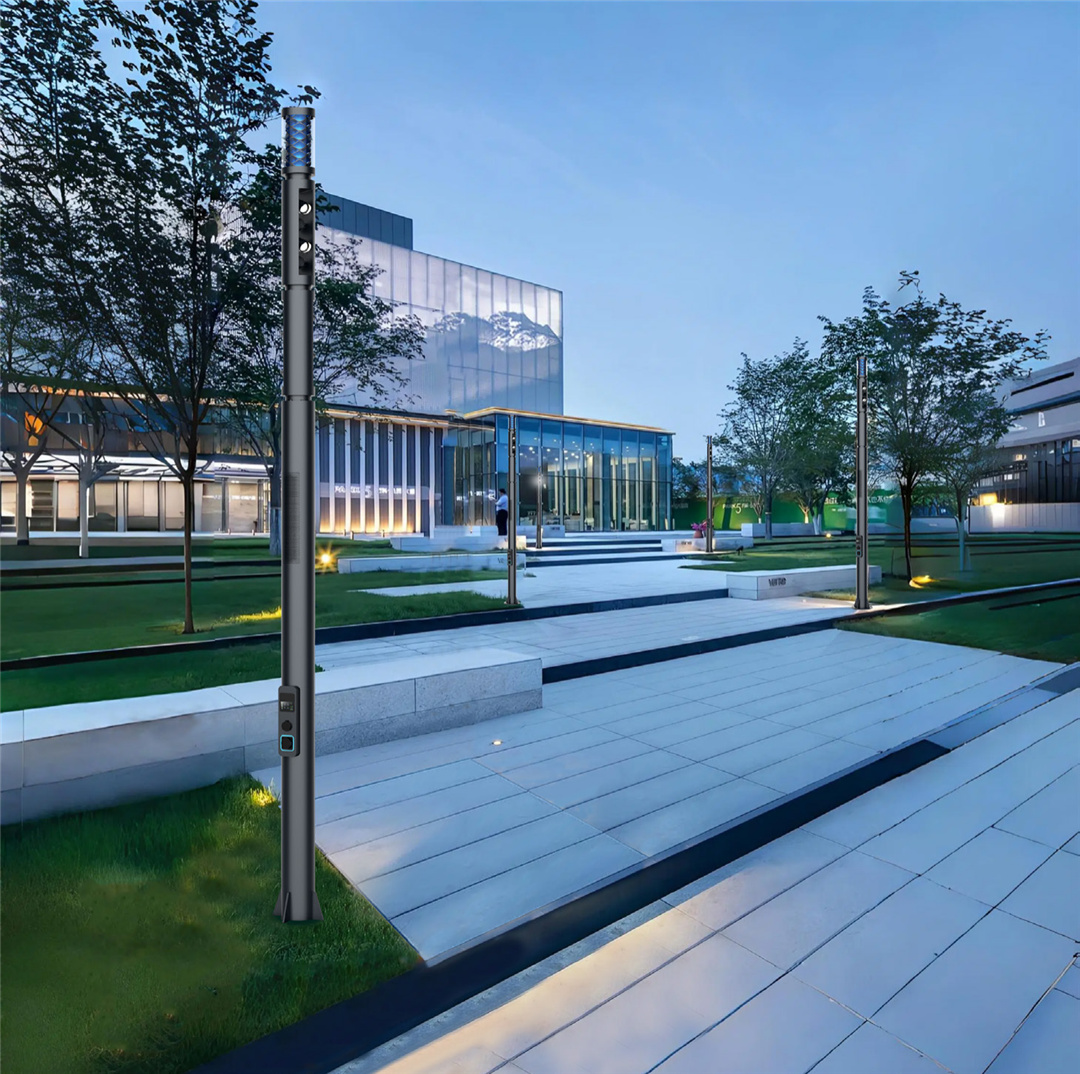

● The “LANG CHAO” series modular smart light pole A is a highly integrated smart pole that combines smart security monitoring, smart lighting, digital IP audio, multimedia interactive display, and EV charging in a fexible multi-functional setup, suitable for outdoor high-end areas such as central business districts, commercial streets, squares, and parks in smart city projects.

● AkzoNobel silver-gray spray fnish, ensuring no discoloration for 5 years; 304 stainless steel fasteners are used.

● The lighting section of the pole is modular, with each segment as an independent component, allowing 360° horizontal rotation and adjustment as needed, and each segment has 4 spotlights adjustable vertically.

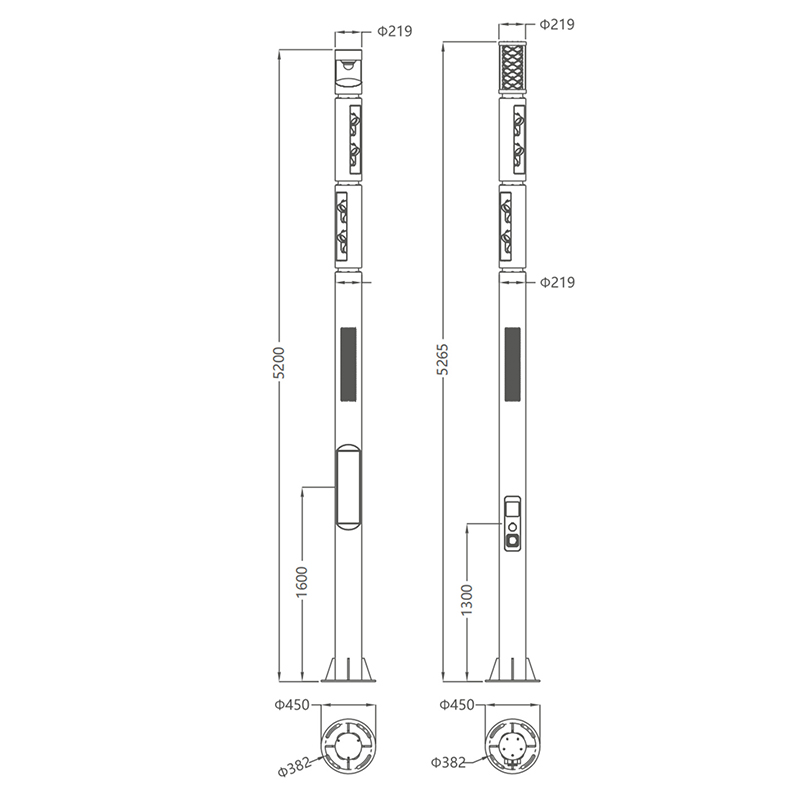

● Lamp specifications: φ219mm, with functional modules freely configurable according to user requirements.

● Smart security monitoring or top ambient lighting (optional): if no monitoring system is used, the top serves as artistic ambient lighting.

● Each lighting module has 4 spotlights, each with 10W power, using CREE high-power chips, and can include anti-glare covers.

● Smart lighting (optional): can connect to a central smart control system, adaptively adjusting color temperature and brightness according to system scenario data and energy-saving mode.

● Pole audio (optional): outdoor weatherproof digital IP audio, supports daisy-chain or single-point playback.

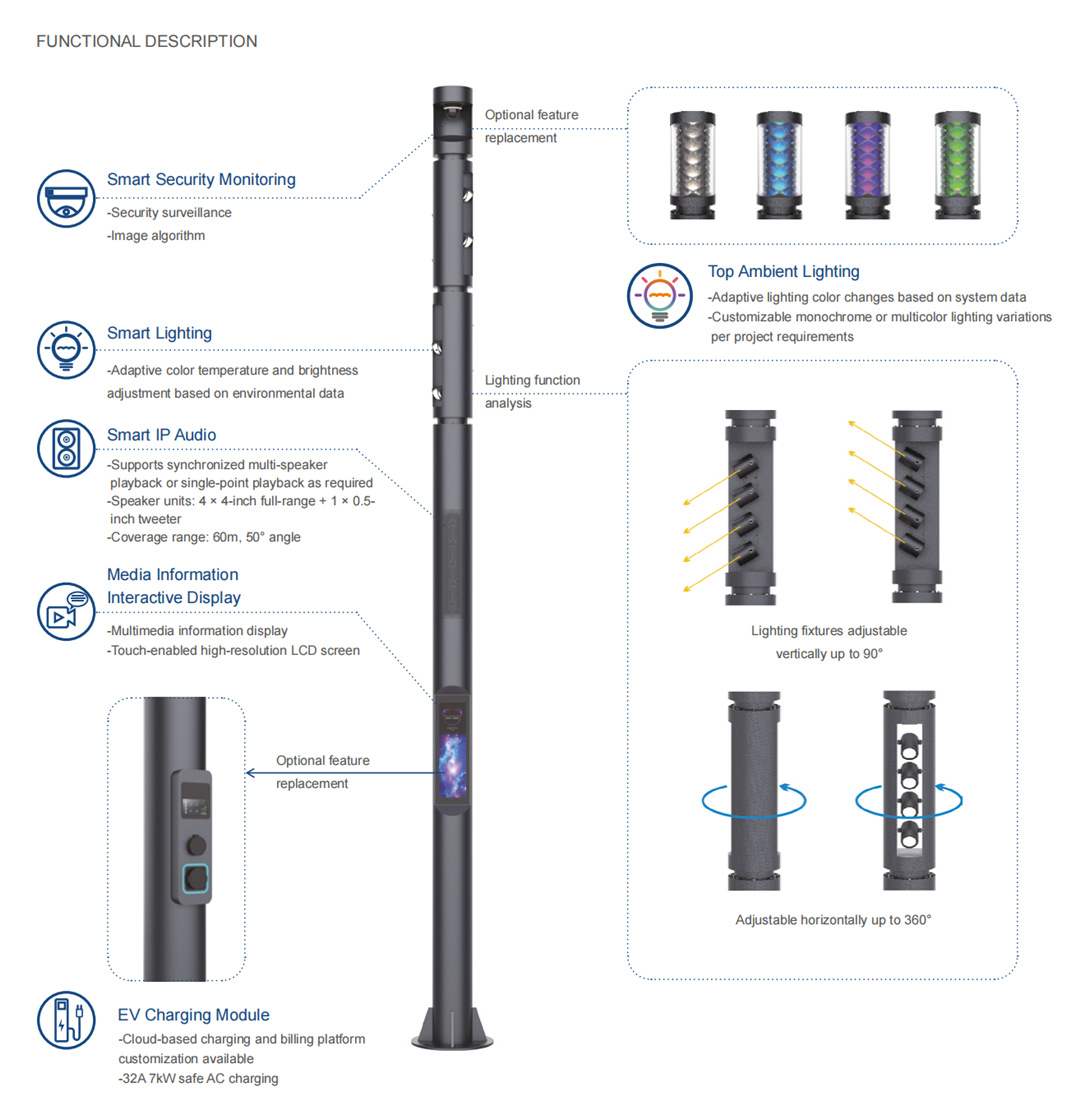

FUNCTIONAL DESCRIPTION

PARAMETER TABLE

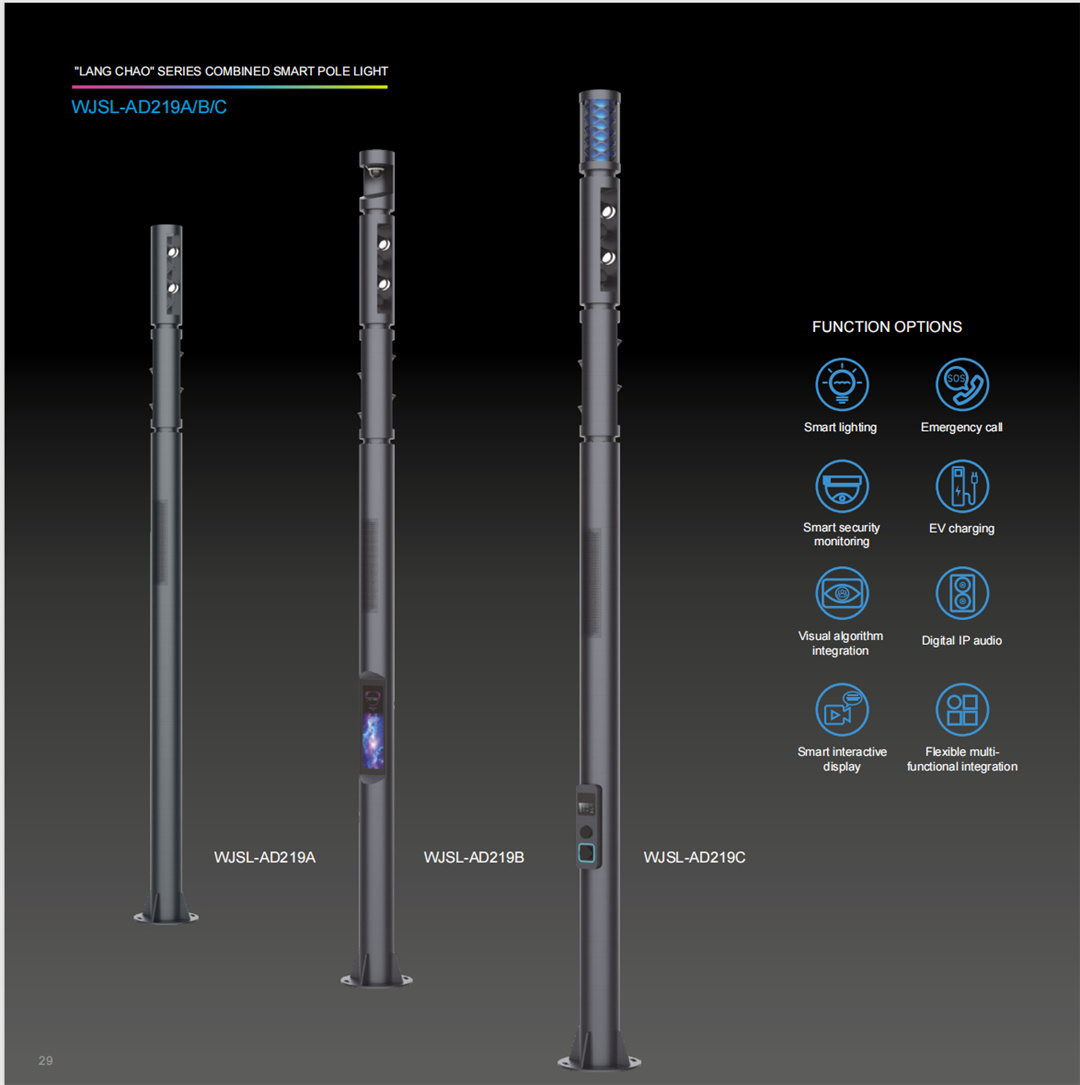

	WJSL-AD219A	WJSL-AD219B	WJSL-AD219C
Smart security monitoring	Spherical surveillance camera / Dome surveillance camera (see page 18:data collection &safety &surveillance camera)		/
Top ambient lighting	/		Inclined 3D hollow wave-pattern light-transmitting component
Smart lighting	Color temperature:single color temperature / 2200K–5000K / RGBW;Control:DMX512;Beam angle:5° / 15° / 30° / 45° selectable;CRI:Ra ≥ 80
Smart IP audio	Built-in amplifier digital audio,speaker units:4 × 4-inch full-range + 1 × 0.5-inch tweeter (see page 16:network IP audio)
Media-integrated information interaction	/	Touch-enabled LCD screen,display Size:146 × 518mm (see page 21:media interactive display)	/
EV charging module	/		32A 7kW safe AC charging (see page 22:EV charging module)
Total power	200W	220W	200W;charging power:7kW
