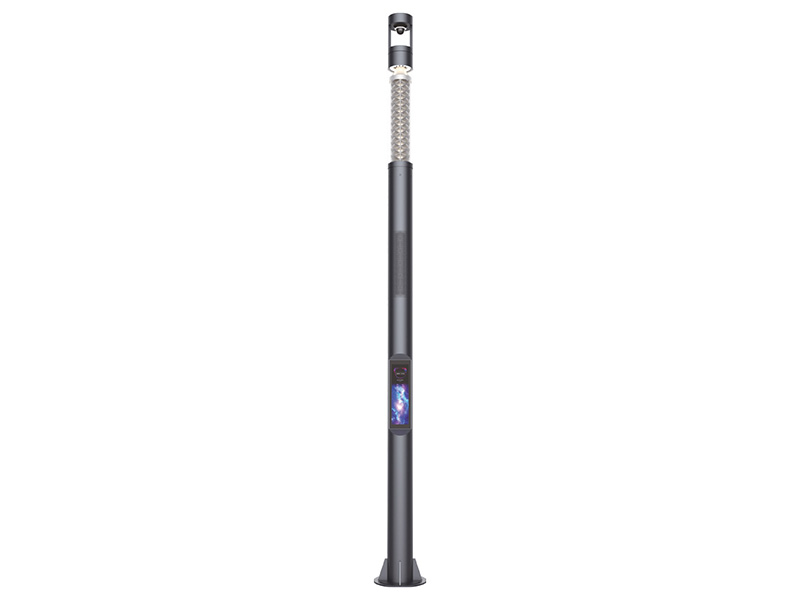

WJSL-BD219C “LANG CHAO” SERIES COMBINED SMART LAMP POLE

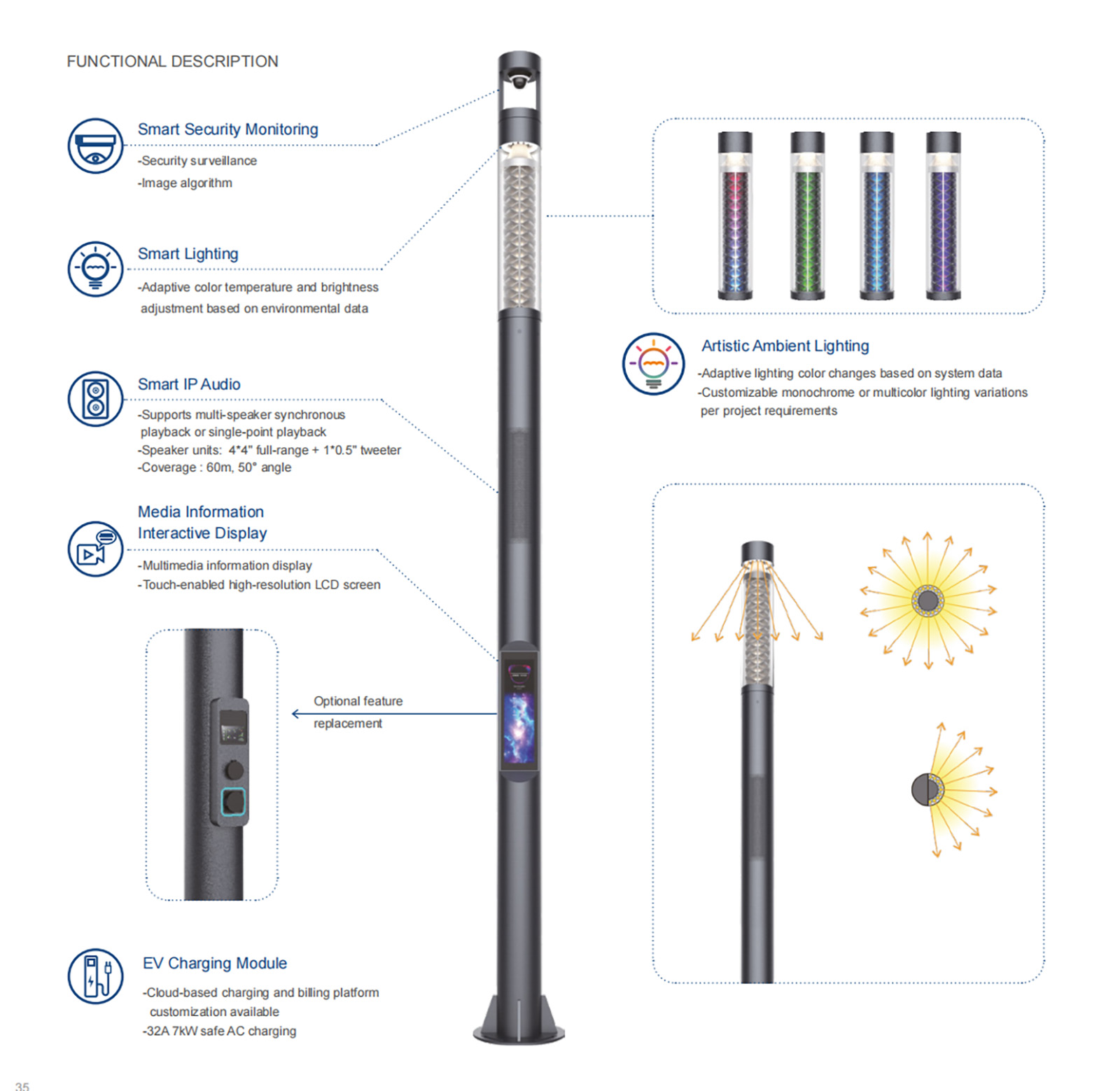

Media Information
Interactive Display
● Multimedia information display
● Touch-enabled high-resolution LCD screen
Artistic Ambient Lighting
● Adaptive lighting color changes based on system data
● Customizable monochrome or multicolor lighting variations per project requirements
Product Features
● The lighting output part adopts a top-down light source with a deep-shade anti-glare structure. Each LED has
directional anti-glare output, with selectable 180° unilateral or 360° circular lighting modes depending on application scenarios.
● The lamp body is mainly made of stainless steel tubing, with a high-grade AkzoNobel sparkling silver-gray powder
coating that remains colorfast for 5 years; 304 stainless steel fastening screws are used.
● Made of anti-aging, highly transparent PC tube, the built-in ambient lighting adopts an upward-slanted wave-pattern hollowed panel combination, which serves as an artistic decorative highlight. It can change effects based on scenario needs or smart data control, while ensuring excellent glare control and high visual comfort.

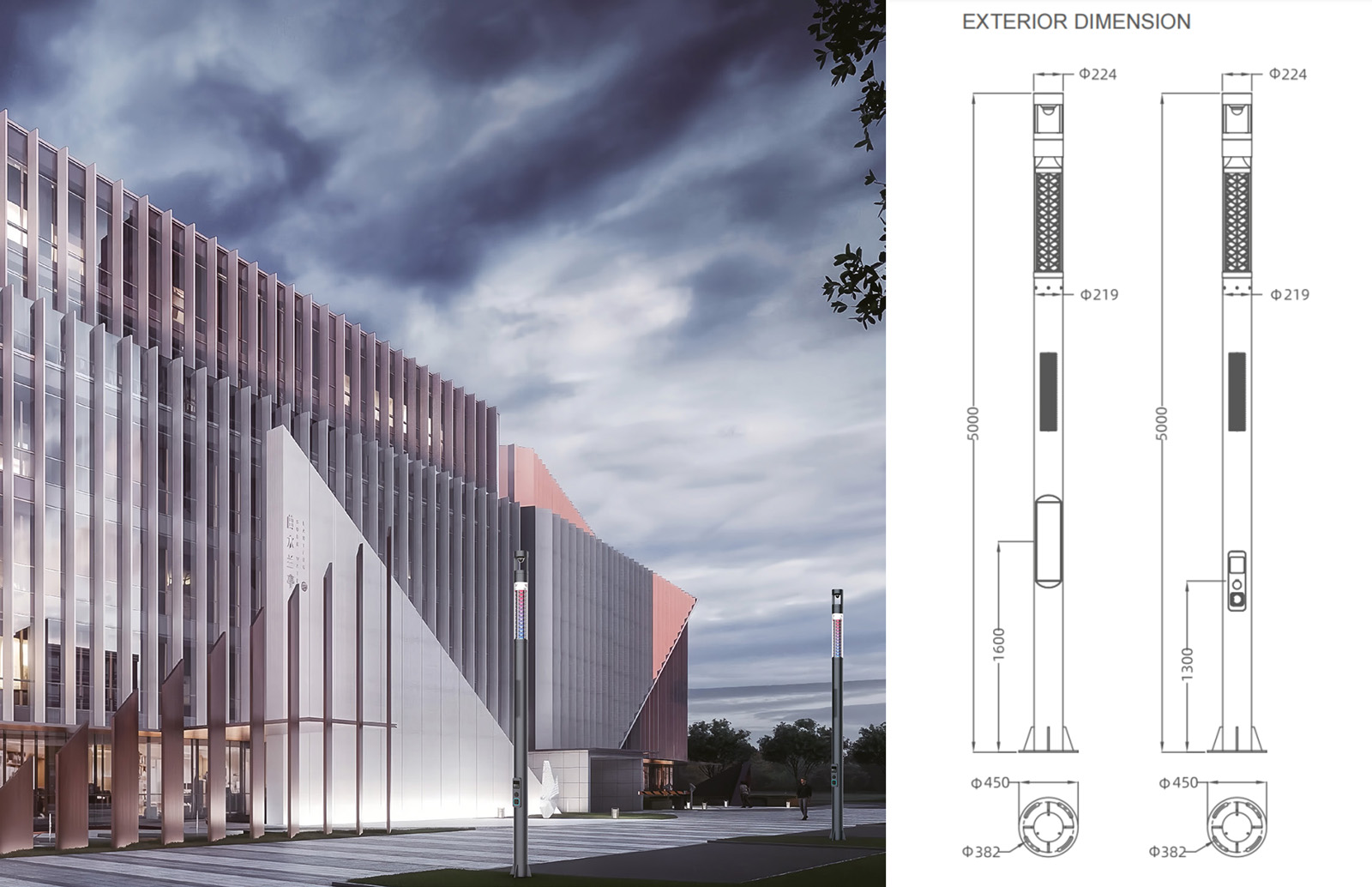

● Lamp specification: φ219mm, with freely rotatable modular functions that can be combined as required.
● Smart lighting: can connect to a central smart control system, with adaptive adjustments of color temperature and brightness levels according to scene data and energy-saving modes (optional).
● Pole audio (optional): the pole can be equipped with built-in IP digital audio as per project requirements. The outdoor waterproof digital IP audio supports both daisy-chain playback and single-point playback.
Frequency range: 120–18,000 Hz. Sensitivity: 91 dB ± 3 dB
Speaker units: 4×4 inch full-range+1×0. 5 inch tweeter; Coverage: 60m, 50° angle.
Amplifier: built-in amplifier. Power: 80W peak power.
Transmission: Ethernet RJ45/10m/100m.
No external amplifier required; broadcasting, music playback, and zone setting can be realized via simple network cable connection.
● Multifunction options (choose one): the pole body can be equipped with either a media information interactive display module or an EV charging module.
● Control: Ethernet control, an integrated intelligent control box, and a fiber optic or Cat5e cable link to the main system.
● Operating voltage: AC220V. ●Protection rating: IP65.
● Installation: embedded foundation, flange base installation.
|
|

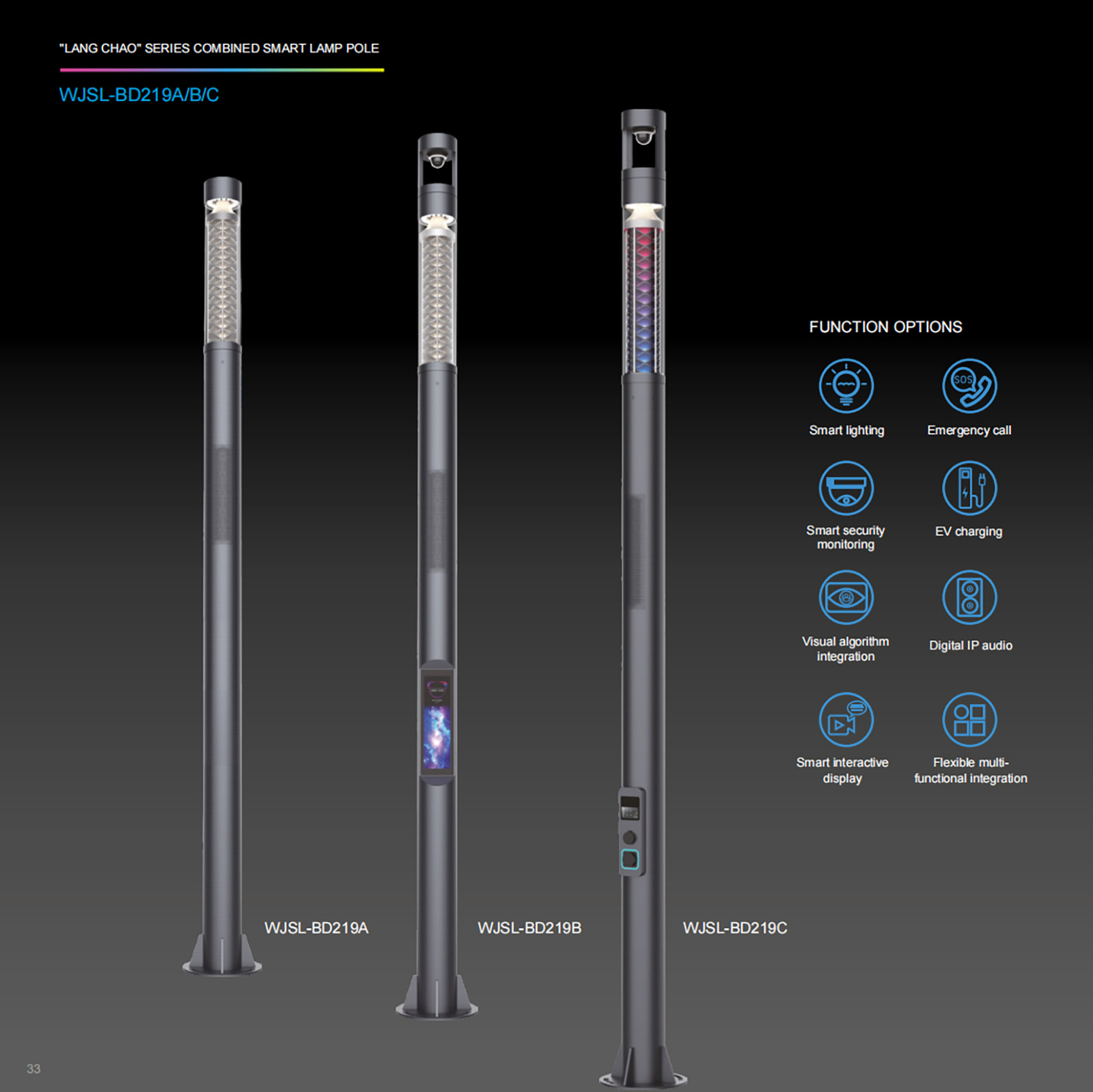

WJSL-BD219A |
WJSL-BD219B |
WJSL-BD219C |
|
Smart security monitoring |
/ |
Spherical surveilance camera/Dome surveillance camera(See page 18: Data collection & safety & surveillance camera) |
|
|
Top ambient lighting |
Inclined 3D hollow wave panel combination; internal single color temperature or RGBW transmission efect;, Can alsoconnect to smart system for color-changing effects |
||
|
Smart lighting |
Color temperature:single color temperature / 2200K–5000K / RGBW;Control:DMX512;Beam angle:120° ;CRI:Ra ≥ 80 |
||
|
Smart IP audio |
Built-in amplifier digital audio, speaker units: 4*4 inch full-range + 1*0.5 inch tweeter (see page 16: network iP audio) |
||
|
Media-integrated information interaction |
/ |
Interactive touch LCD screen, display size: 146*518mm.(see page 21: information linkage & media display) |
/ |
|
EV charging module |
/ |
32A 7kW safe AC charging(see page 22: EV charging module) |
|
|
Total power |
208Wv (functional lighting 70v) |
228W (functional lighting 70w) |
208W (functional lighting 70w);Charging power: 7KW |
