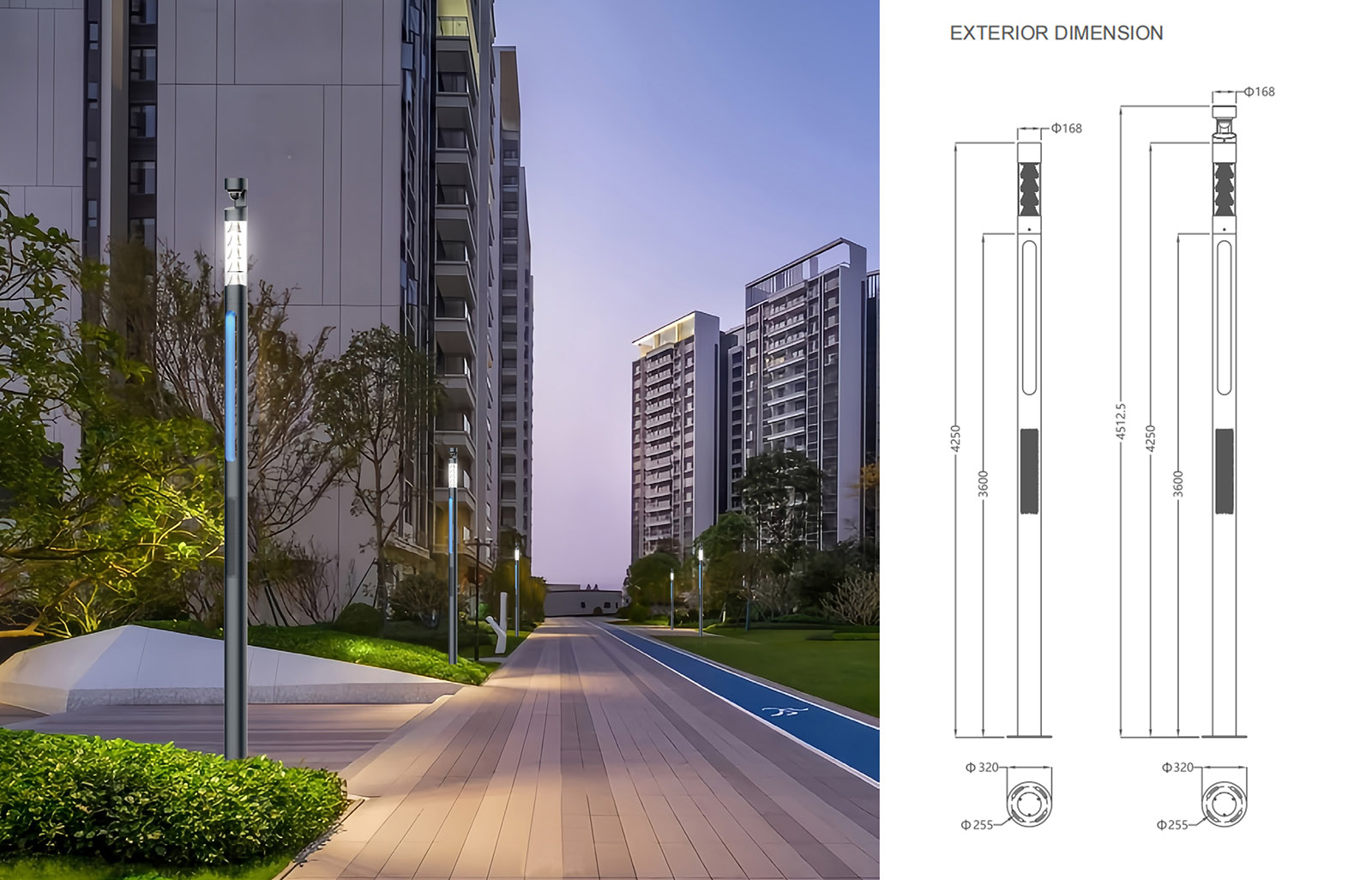

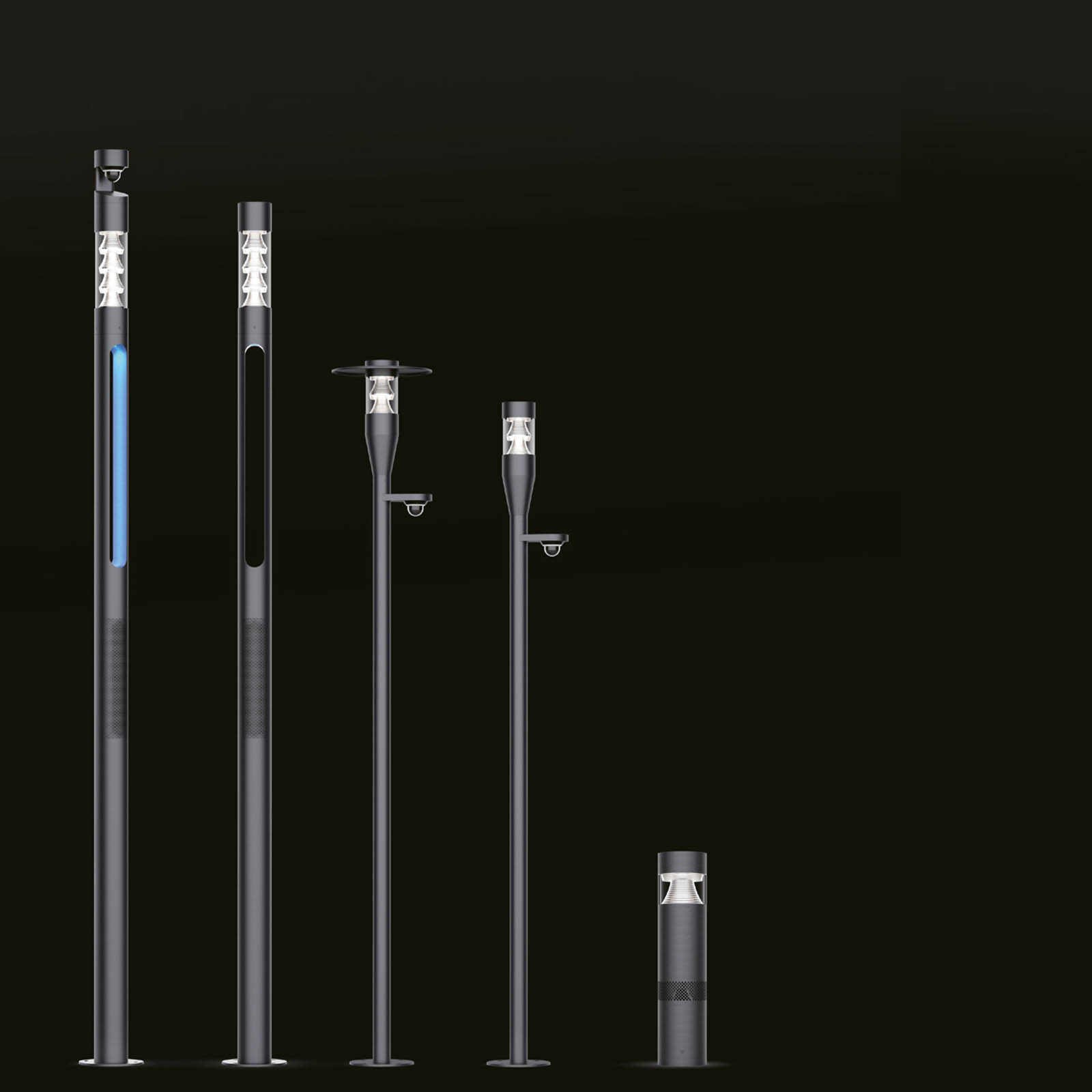

WJSL-FGD165A “FENG CAI” SERIES SMART GARDEN LAMP , BOLLARD LAMP

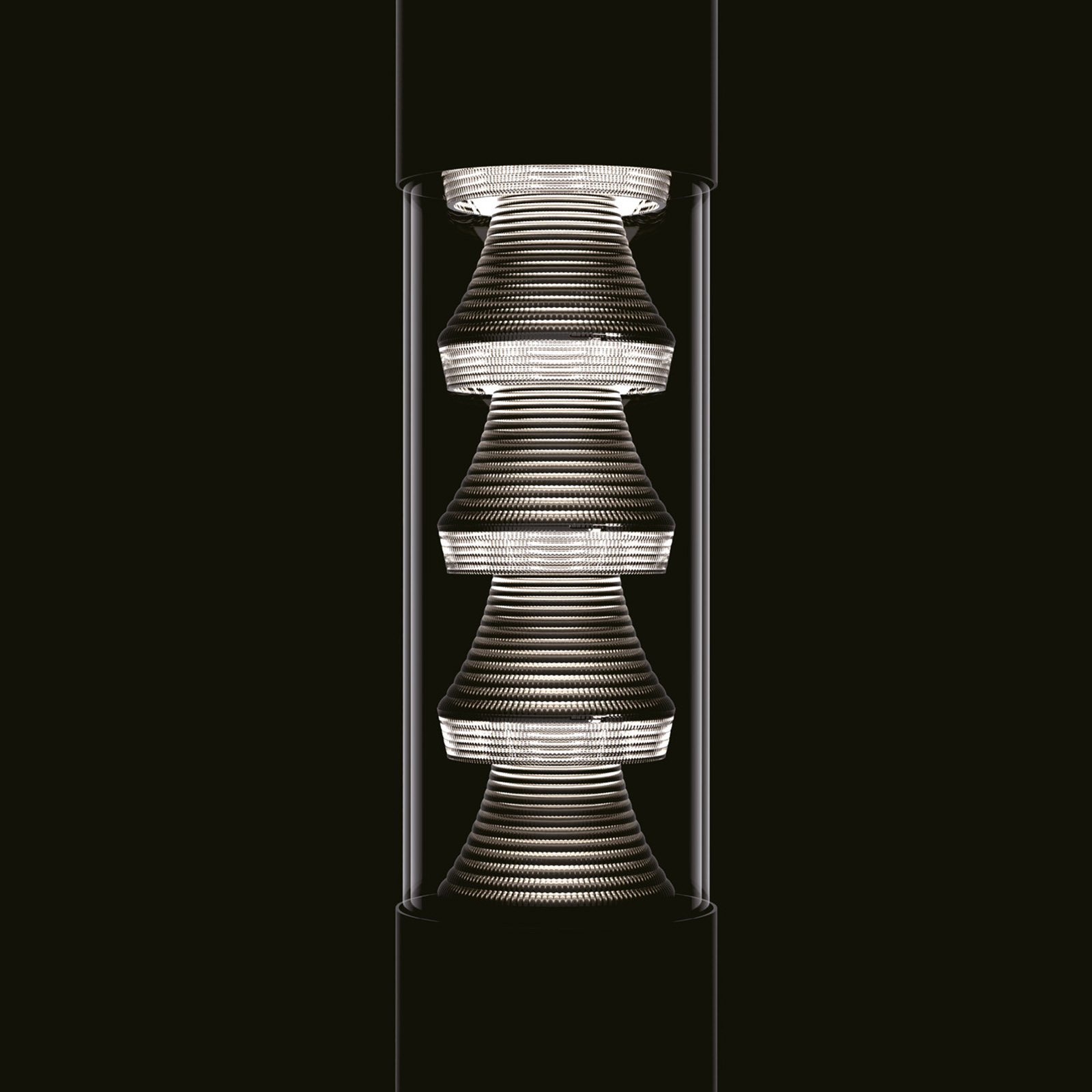

Lighting And Anti-Glare Design
● LED Chips
● Multi-faceted mirrored reflector
● Multi-faceted smoke
● colored semi-transparent
● shade cover
Smart Safety & Surveillance
● Security surveillance

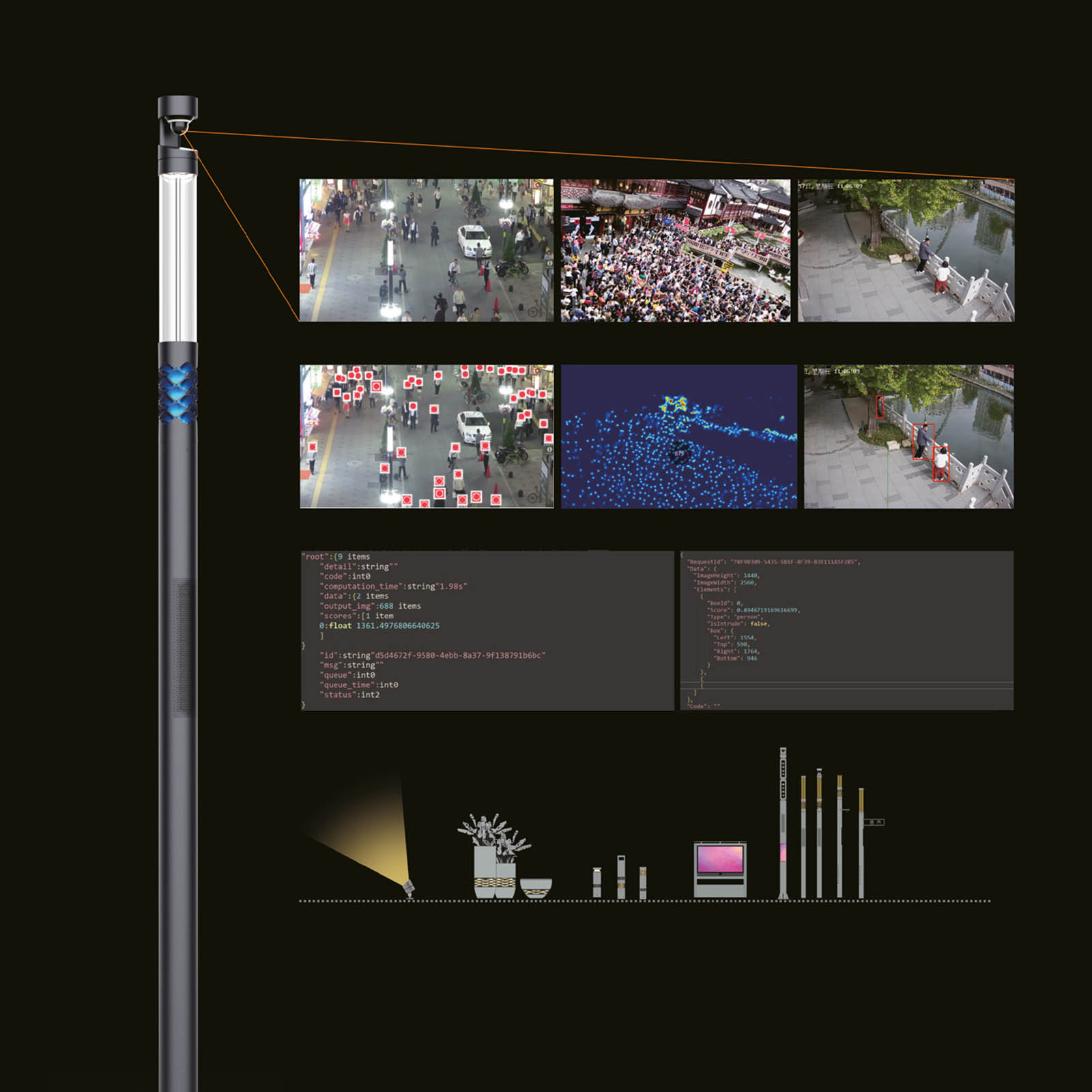

● Image algorithms
Product Features
●Application

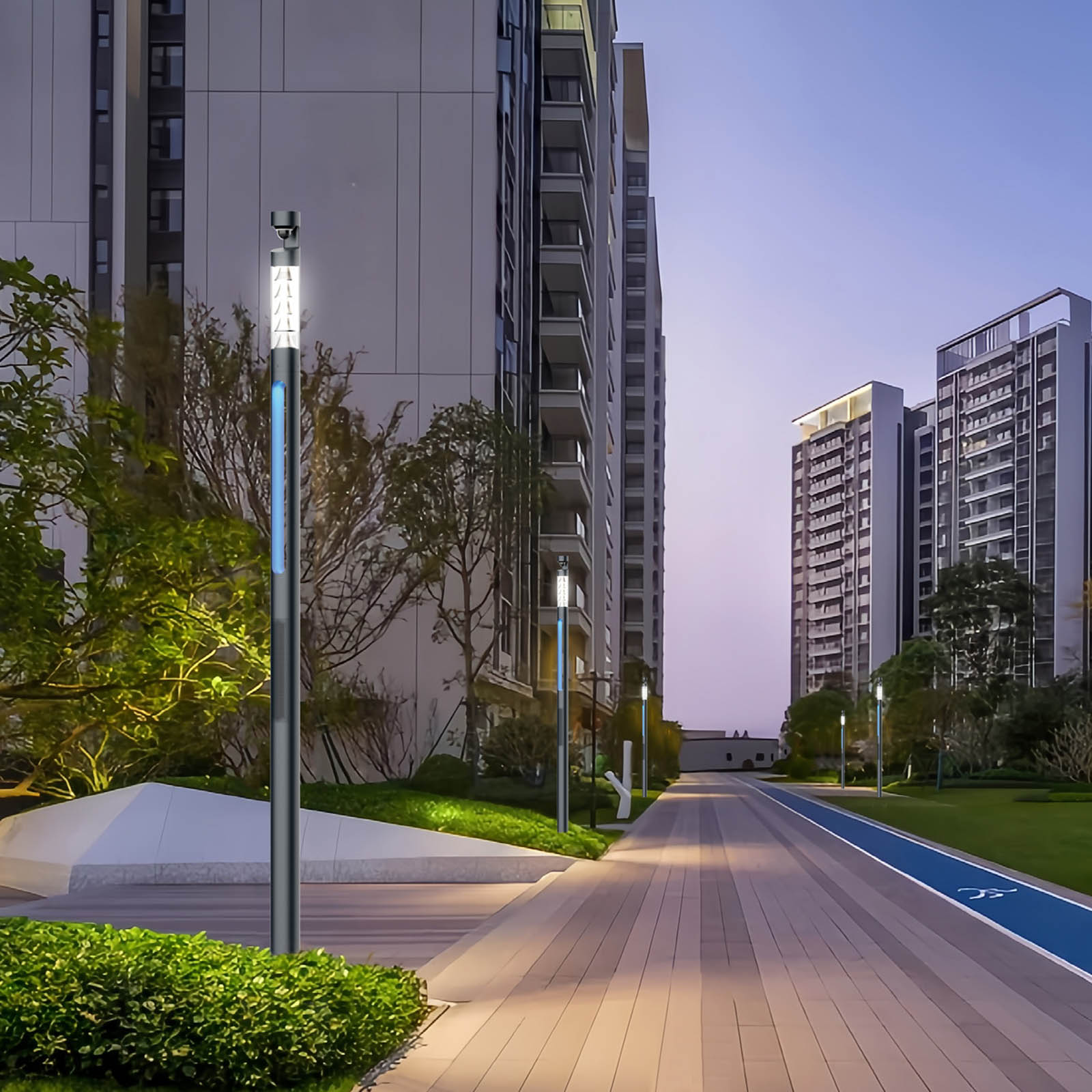

The “FENG CAI” series basic smart garden lamp 2 integrates smart safety & surveillance, smart lighting, digital IP audio, and multiple other functions into a highly integrated smart lamp post, suitable for business districts, commercial streets, parks, and smart communities in high-end outdoor areas for smart city construction.
● Lamp Features
/The LED light source, through the combined stacking of built-in reflectors, produces multiple levels of illumination to meet the lighting requirements of various environments.
/The built-in optical components combine 3D multifaceted prisms and smoke-colored semi-transparent facets. The light source is downward, with all light undergoing secondary diffuse reflection; the combined reflector is both an artistic decorative highlight and an excellent anti-glare element for visual comfort.
/The elongated hollow section in the middle of the lamp can house embedded spotlights for ambient lighting as required, suitable for various locations.
/The top camera can rotate 360° horizontally and is fixed with screws after adjusting to the desired angle.
/When necessary, the built-in intelligent controller may adjust color temperature and brightness while using energy-saving modes by connecting to the smart central control system.
/Lamp post audio (optional): the lamp can house built-in IP digital audio as needed, with adaptive volume adjustment based on the environment.
/Installation method: embedded foundation with flange base mounting.
● Main Materials
/The built-in optical components of the lamp are made from high-strength PC casting with surface electroplating.
/Anti-aging, high-transparency PC tube with strong self-cleaning and excellent light transmittance.
/The lamp head construction is built of stainless steel and aluminum alloy, finished with a premium AkzoNobel silver-gray coating that lasts for five years. The fasteners are made of 304 stainless steel. The lamp body is mostly composed of metal tubing.
|
Smart safety & surveillance (optional) |
Spherical surveillance camera/Dome surveillance camera(see page 18: data collection & safety & surveillance camera) |
|
Artistic ambient lighting |
RGBW color-changing light-transmission effect; can also be connected to smart systemsto change light colors as needed |
|
Smart lighting |
Color temperature options: a. single colorb.2200K-5000KC.RGBWControl method: DMX512 or switch type;Beam angle: 120°;Color rendering index: Ra > 80 |
|
Smart lP audio |
Built-in amplifier diqital audio. Peak Power: 60W Speaker units: 4×4 inch full-range + 1×0.5 inch tweeter (see page 16: network IP audio) |
|
Intelligent control box |
Built-in intelligent controller with multi-channel Ethernet gateway integration |
|
Other confiqurations (optional) |
a.one-touch help b.visual algorithm integration c. WiFi transmission |
|
Protection level |
IP65 |
|
Operating voltage |
AC220V |
|
Power |
Lighting 60W, ambient light 6w, security camera 15w, audio 60W |
