WJSL-FGD165B/C “FENG CAI” SERIES SMART GARDEN LAMP
Smart Safety & Surveillance
● Security surveillance
● Image algorithms
● Smart Lighting
Adaptive color temperature or brightness changes based on environmental data
Product Features
●Application

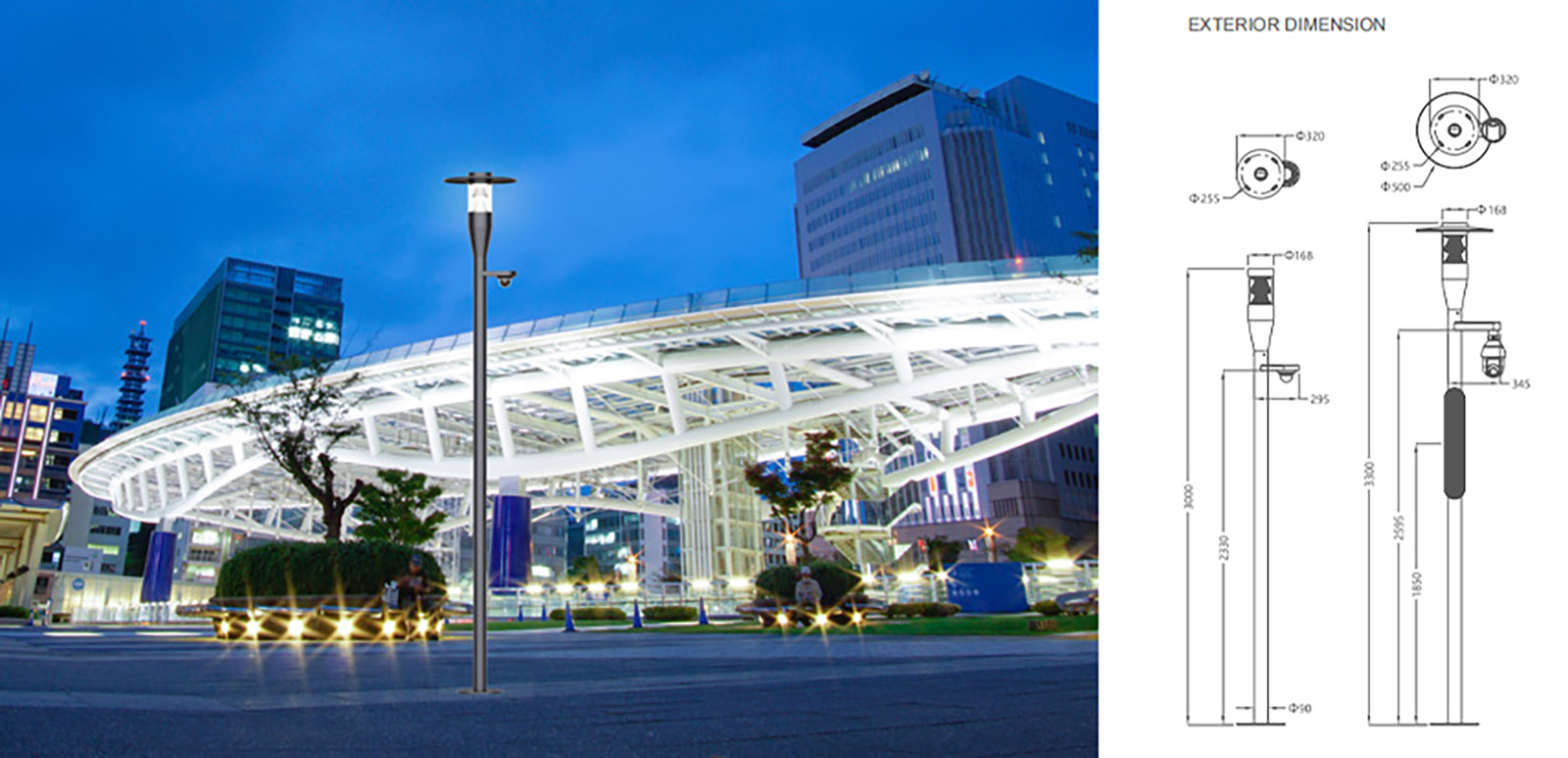

The “FENG CAI” series basic smart garden lamp 2 integrates smart safety & surveillance, smart lighting, digital IP audio, and multiple other functions into a highly integrated smart lamp post, suitable for business districts, commercial streets, parks, and smart communities in high-end outdoor areas for smart city construction.
● Main Materials
/The lamp body is mainly made of metal tubing, with the lamp head structure made from aluminum alloy and stainless steel, finished with high-grade AkzoNobel silver-gray coating that remains unchanged for 5 years; fasteners are 304 stainless steel.
/The built-in optical components of the lamp are made from high-strength PC casting with surface electroplating.
/Anti-aging, high-transparency PC tube with strong self-cleaning and excellent light transmittance.
● Lamp Features
/The built-in optical components combine 3D multifaceted prisms and smoke-colored semi-transparent facets. The light source is downward, with all light undergoing secondary diffuse reflection; the combined reflector is both an artistic decorative highlight and an excellent anti-glare element for visual comfort.
/LED light sources and integrated reflectors produce a range of brightness levels to satisfy different venues' lighting needs.
/A camera can be horizontally mounted on the top of the lamp post, and the lamp can be adjusted to the desired installation angle.
/can be connected to the control system, enabling brightness and color temperature modifications under energy-saving modes as needed by the central control system.
/Installation method: embedded foundation with flange base mounting.
|
Smart safety & surveillance (optional) |
Spherical surveillance camera/Dome surveillance camera(see page 18: data collection & safety & surveillance camera) |
|
Smart lighting |
Color temperature options: a. single colorb.2200K-5000KC.RGBWControl method: DMX512 or switch type;Beam angle: 120°;Color rendering index: Ra > 80 |
|
Intelligent control |
Built-in intelligent controller |
|
Other configurations (optional) |
a.visual algorithm integration |
|
Control method |
Ethernet network control, connected to the main system via fiberoptic or Cat5e cable |
|
Protection level |
IP65 |
|
Operating voltage |
AC220V |
|
Power |
Lighting 30w, security camera 15W |
