High Power Architectural LED Flood Light for Building Facade Lighting WJTS-176-F12

High Power Architectural LED Flood Light for Building Facade Lighting WJTS-176-F12

Surface treatment: Oxidation and outdoor grade spraying can

beselected.

Light source: High-power Cree .

Color rendering index: Ra≥80

Protection level: IP65

Operating voltage: DC24V /AC100-277V

Control method: Switch control / DMX512 /RDM

Installation method: 0 ° ~ 90° adjustable angle mounting bracket,

can be installed on the ground or wall.

Light body color: silver gray/dark gray.

Send email to us

Product Detail

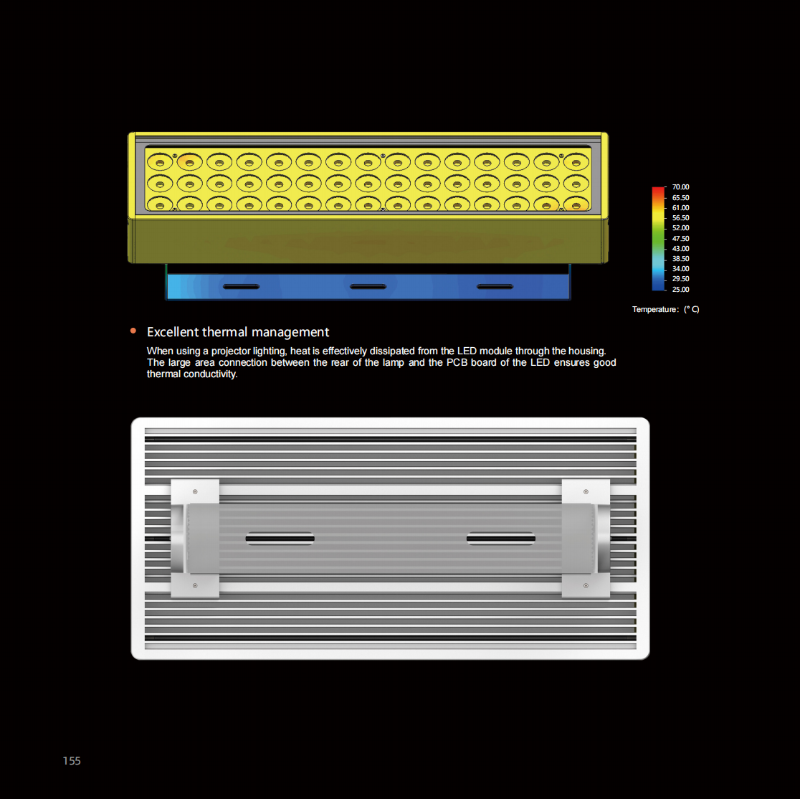

Excellent thermal management

When using a projector lighting, heat is effectively dissipated from the LED module through the housing.

The large area connection between the rear of the lamp and the PCB board of the LED ensures good

thermal conductivity

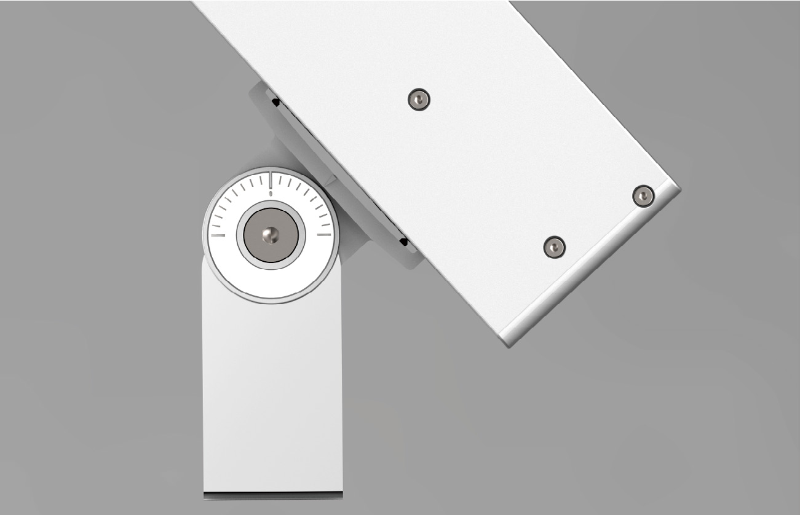

Precisely setting design

The dial with graduations helps to accurately align the lamps. It ensures quick and easy setup, especially for lamps arranged in a row, which can

be adjusted to the exact same tilt angle. The 180° adjustable tilt of the luminaire can be precisely adjusted to achieve the best beam alignment,

and the light will be irradiated precisely where you need it.

Previous: Pole Mounted Architectural Flood Light for Landscape Lighting | WJTS-UP176

Next:

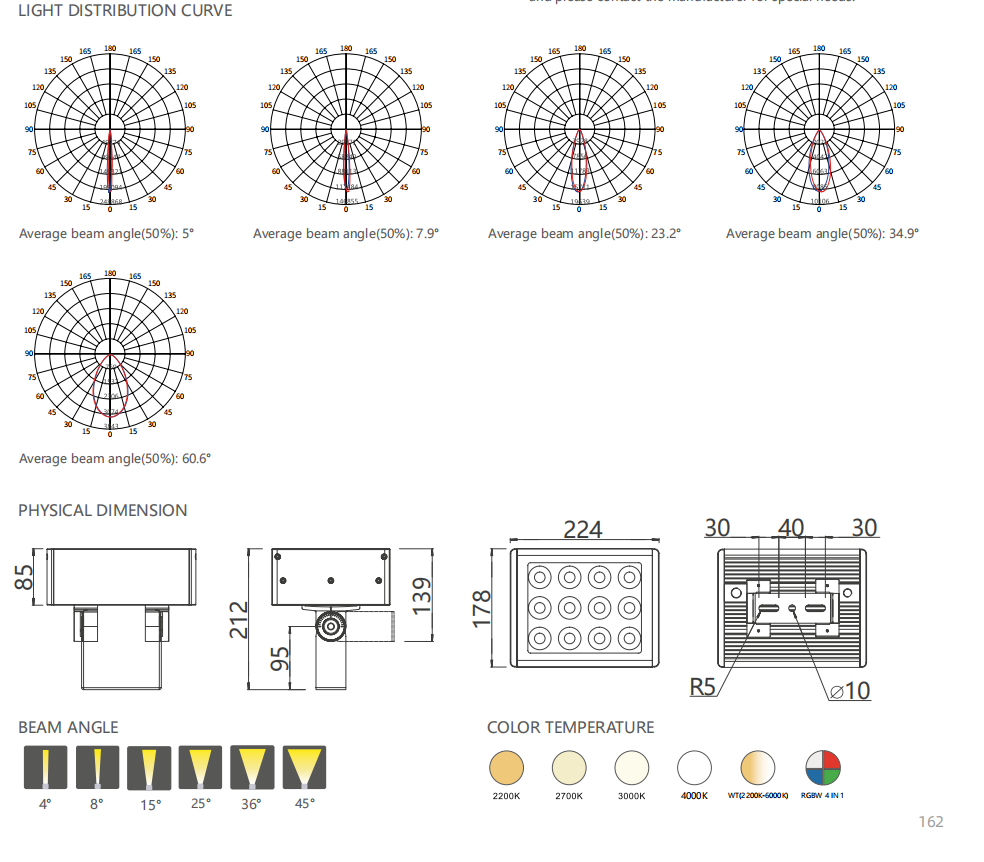

ITEM	LED CHIP	POWER/W	CCT/K	BEAM ANGLE	INPUT VOLTAGE/V	CONTROL METHOD
WJTS-176-36	12	36W	2200K/2700K/3000K/4000K	4° /8° /25° /36° /60°	DC24V/AC100-277V	ON/OFF(SWITCH)
WJTS-176-48	12	48W	2200K/2700K/3000K/4000K	4° /8° /25° /36° /60°	DC24V/AC100-277V	ON/OFF(SWITCH)
WJTC-176-60	12	60W	RGBW 4 IN 1	15° /25° /45°	DC24V/AC100-277V	DMX512/RDM
WJTG-176-48	12	48W	WT(2200K-6000K)	4° /8° /25° /36° /60°	DC24V/AC100-277V	DMX512/RDM
Remark:Product parameters will be updated with technological progress,and please contact the manufacturer for special needs.

PRODUCT FEATURES

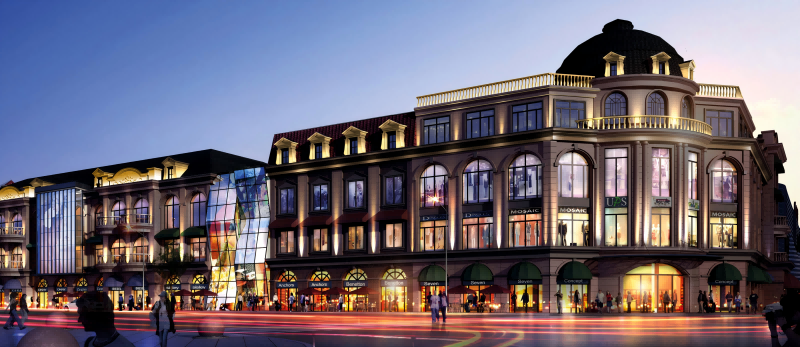

Minimalist shape design, simple and elegant, suitable for outdoor key area lighting and outdoor highbuildings, bridges and etc.

Integrated heat dissipation lamp, practical ambient temperature range -20 ° ~ 60 °, electrical safety class III.

Lamp body 6063 extruded aluminum profile, thermal conductivity 210W / M * K, excellent heat dissipation effect.

End cover Aluminum alloy die-casting, stainless steel screws, aging resistant silicone seal ring.

High-efficiency PMMA optical lens, pointing accurately.

The lamp body has assemble breath voir to balance the pressure of the lamp cavity at different temperatures.

High-strength ultra-white tempered glass, transparent 92% light rate.
