WJSF-F03 MULTI-FUNCTIONAL COMBINED URBAN FURNITURE LIGHTING DEVICE

WANJIN smart city furniture refers to urban furniture equipped with data collection, communication transmission, and remote control functions for smart city management and services. These furnitures not only provide traditional outdoor furniture functions such as leisure, rest, entertainment, and social interaction, but also integrate modern information technology, becoming an important component of smart cities. In the future, smart city furniture will become more intelligent, humanized, and convenient, providing citizens with a higher quality living experience.

Send email to us

Product Detail

Product Parameters

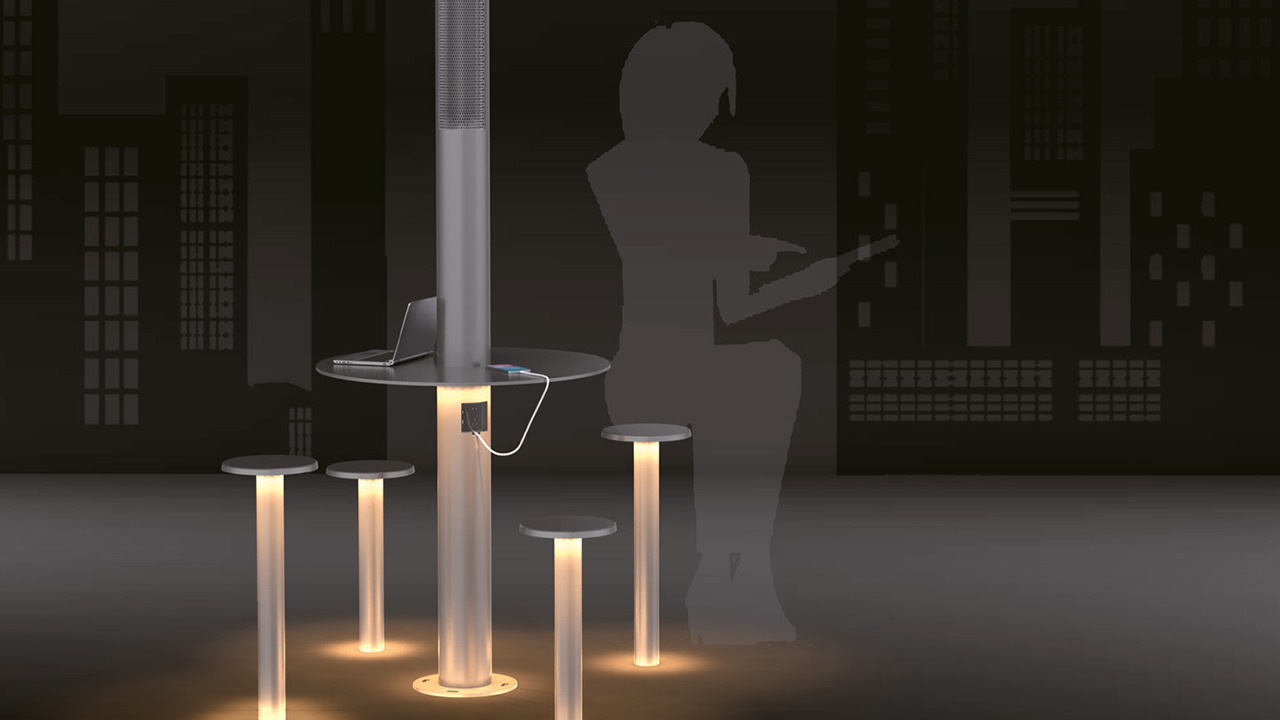

Smart Lighting

● Adaptive color temperature and brightness

● adjustment based on environmental data

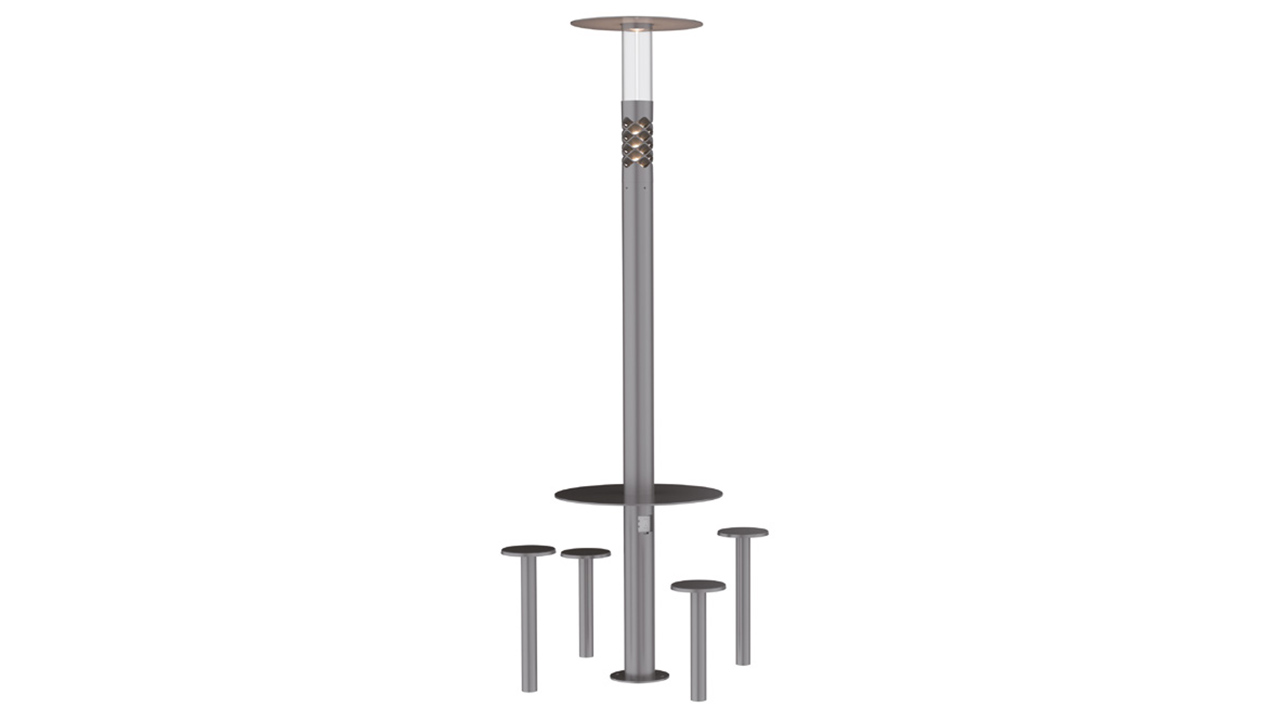

WJSF-F03 MULTI-FUNCTIONAL COMBINED URBAN FURNITURE LIGHTING DEVICE (2)

Media Information Interactive Display

● Multiple speakers can be synchronized or played individually as required

● Speaker unit: 4*4 inch full-range + 1*0.5 inch tweeter

● Coverage up to 60m, angle 50°

Product Features

●Application：
The WANJIN multifunctional smart furniture lighting fixture Model 03 integrates smart lighting, digital IP audio, charging service, and other functions into an urban furniture. It is suitable for business districts, commercial streets, parks, smart communities, and other high-end outdoor areas or smart city projects.

/The tabletop is made of aluminum alloy, while the seat light fixture is made of stainless steel.

●Lighting Features:

/The top lighting part uses secondary reflection to prevent glare while delivering excellent illumination.

/The ambient lighting section uses upward-tilted wave-textured perforated panels as decorative highlights. Lighting effects can be adapted to different scenes or intelligent data, ensuring excellent glare control and visual comfort.

/Downward lighting is installed under the tabletop and seat, creating a pleasant ambient lighting effect.

/The pole is equipped with a 220V power outlet and USB charging ports.

/A built-in intelligent controller can connect to a central smart control system, supporting overall light adjustment, color temperature changes, and brightness dimming in energy-saving mode.

/Pole audio (optional): the fixture can be equipped with built-in IP digital speakers, with adaptive volume adjustment based on scene requirements.

/Installation method: embedded foundation with flange base installation.

Previous: WJSL-ES01 Wanjin Smart Light Environment System Server

Next: WJSF-F03 COMBINED URBAN FURNITURE LIGHTING DEVICE

Smart lighting	single color temperature / 2200K–5000K
Control method	DMX512 or switch; angle:120°
Color rendering index	Ra ≥ 80
Smart audio (optional)	built-in powered digital speaker, peak power 60W
Speaker unit	4*4 inch full-range + 10.5 inch tweeter
(see page 17	network IP audio)
Intelligent control	built-in intelligent controller with integrated lighting and audio control
Control method	Ethernet network control, connected to the main system via optical fiber or Cat5e cable
Protection rating	IP65
Operating voltage	AC220V
Power	Lighting 15W, audio 60W
