WJSL-AS01 Wanjin Smart Light Environment System Server

The WANJIN smart light environment algorithm server is a core device for analyzing and calculating night scene images in the development of smart city nightscape lighting. Leveraging advanced computer and network technologies and intelligent image algorithms, it provides image data analysis and processing for the main server, identifying changing trends and patterns in scenes and providing data support for optimizing the lighting environment. It can be widely used in smart city nightscapes, including central business districts, commercial streets, landscape lighting, smart buildings, cultural tourism night tours, smart community services, and smart road lighting. It can be integrated with the broader smart city system and become an integral part of smart city development.


Product Detail

Product Detail

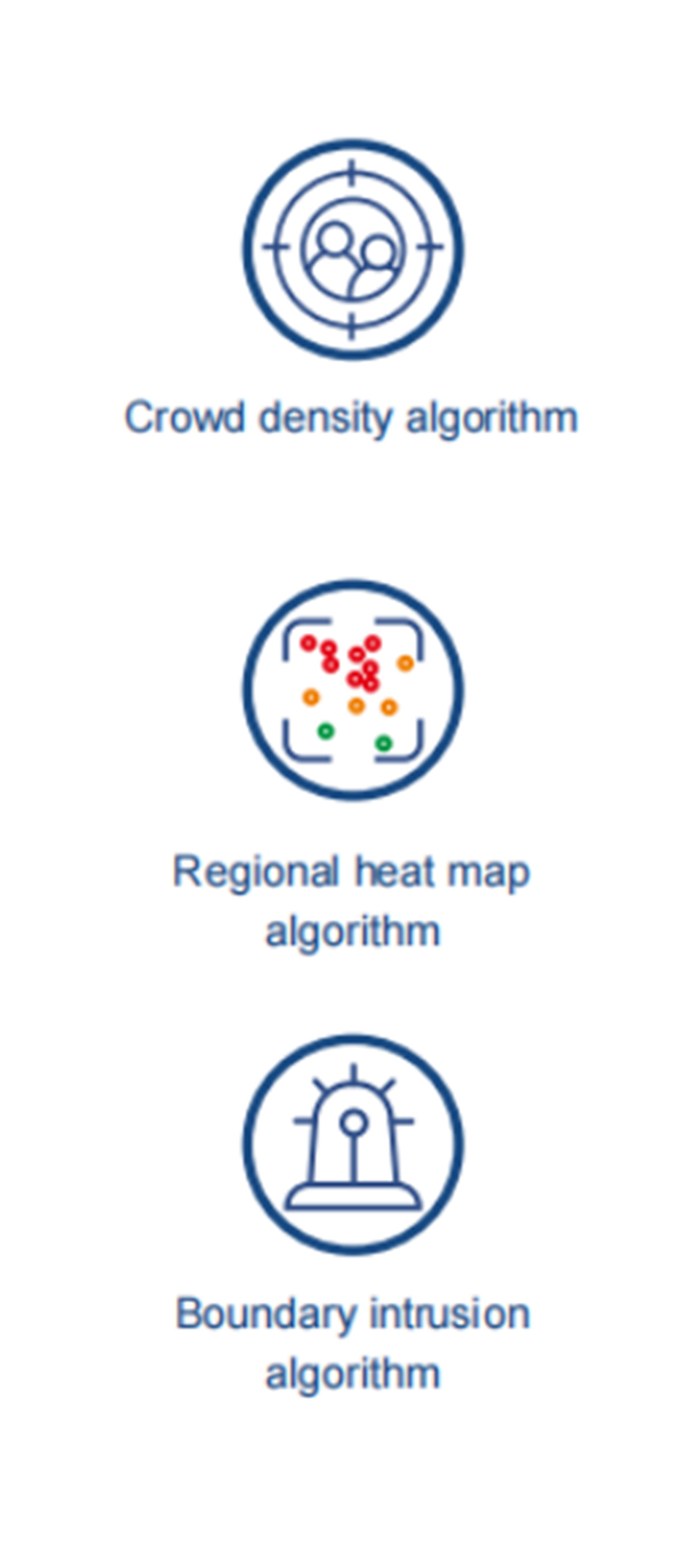

Crowd density algorithm

Regional heat map algorithm

Boundary intrusion algorithm

The WANJIN smart light environment algorithm server is a core device for an (6)
The WANJIN smart light environment algorithm server is a core device for an (2)
The WANJIN smart light environment algorithm server is a core device for an (5)

FUNCTIONAL DESCRIPTION

The WANJIN smart light environment algorithm server is a core device for an (7)

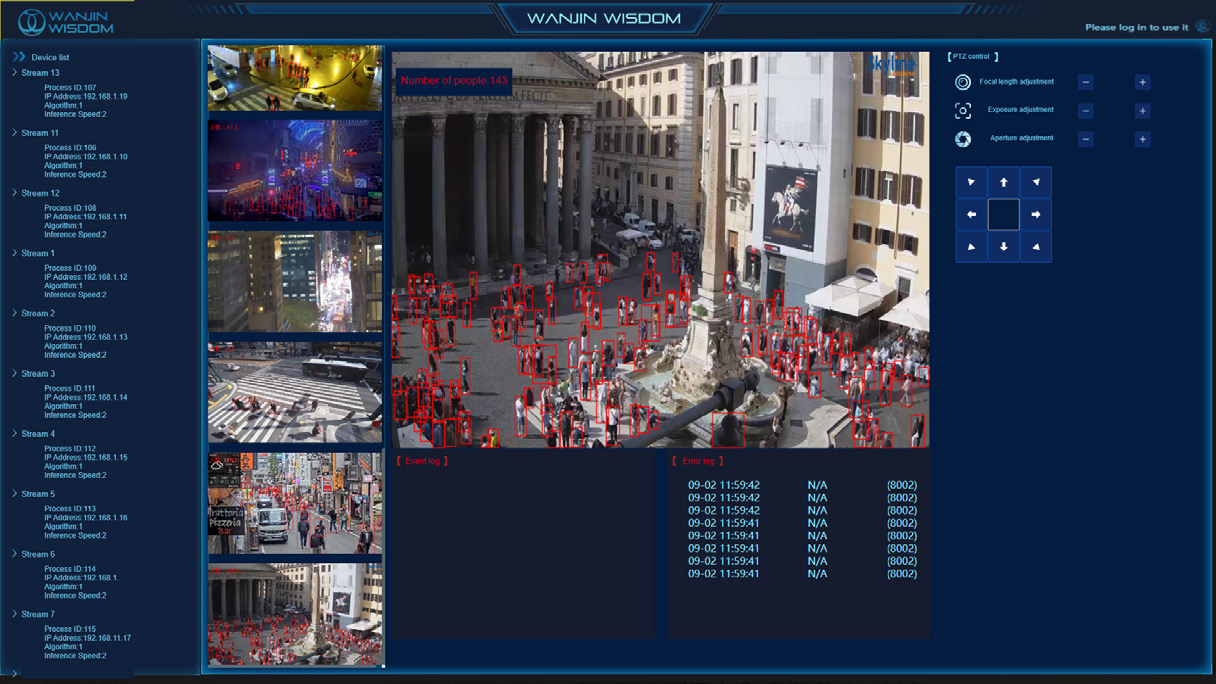

WJSL-AS01 picture

FUNCTIONAL DESCRIPTION

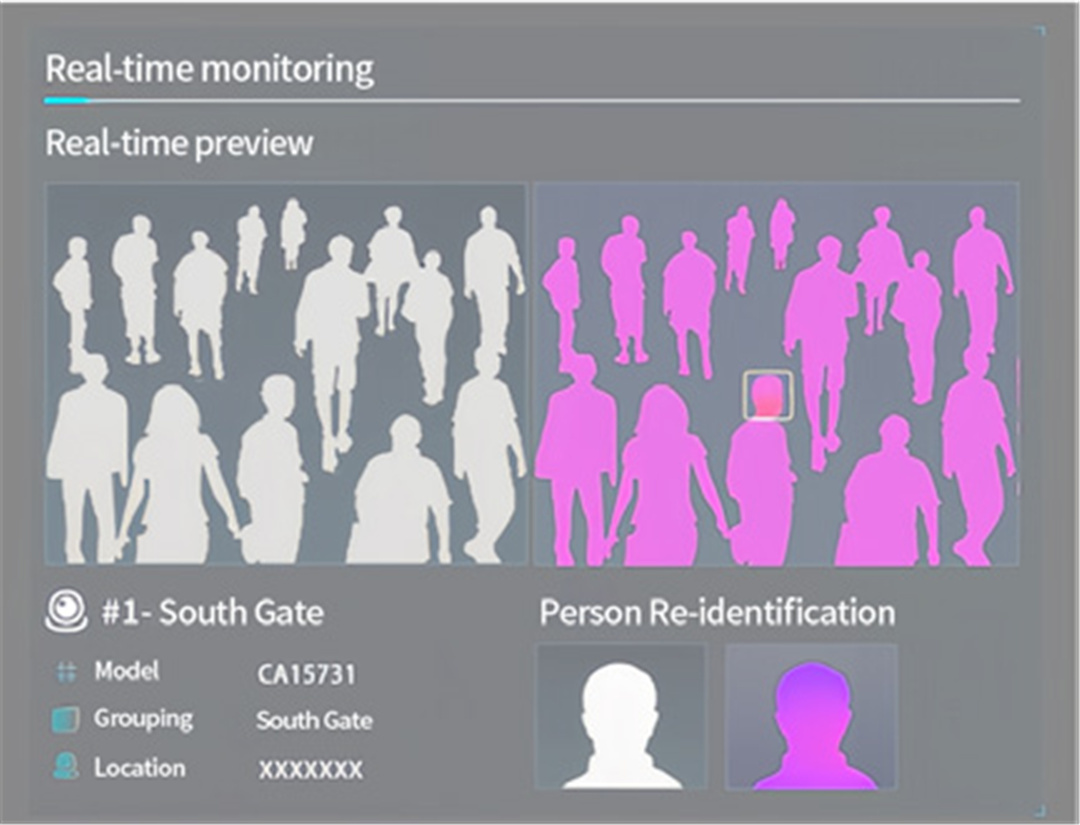

● Supports crowd density algorithms: real-time calculation of crowd density within the current image, including pedestrian detection, crowd counting, density analysis, and crowd status analysis.

● Supports regional heat map algorithms: real-time calculation of the density of each area within the current image, presenting it as a heat map and providing the relevant data to the light environment system.

● Supports boundary intrusion algorithms: After identifying a target, the target's coordinates are obtained, determining whether the target is within the designated area, and providing the relevant data to the light environment system.

WJSL-AS01 (2)

PARAMETERS

Processor

Intel Core Ultra

Standard Memory

16G DDR4

Standard Storage

1T SSD

Network

Dual Gigabit 2-Port LAN

Driver

1200W

Video Output

1 x DisplayPort 1.2 Integrated Graphics, 4 x DisplayPort 1.4 Discrete

Video Input

Graphics2xHDMI

Audio Port

Stereo Audio x1 (2-channel)

USB Port

6xUSB 3.0 Ports (2 front, 4 rear)

Network Port

2 xRJ45 Giqabit LAN Ports

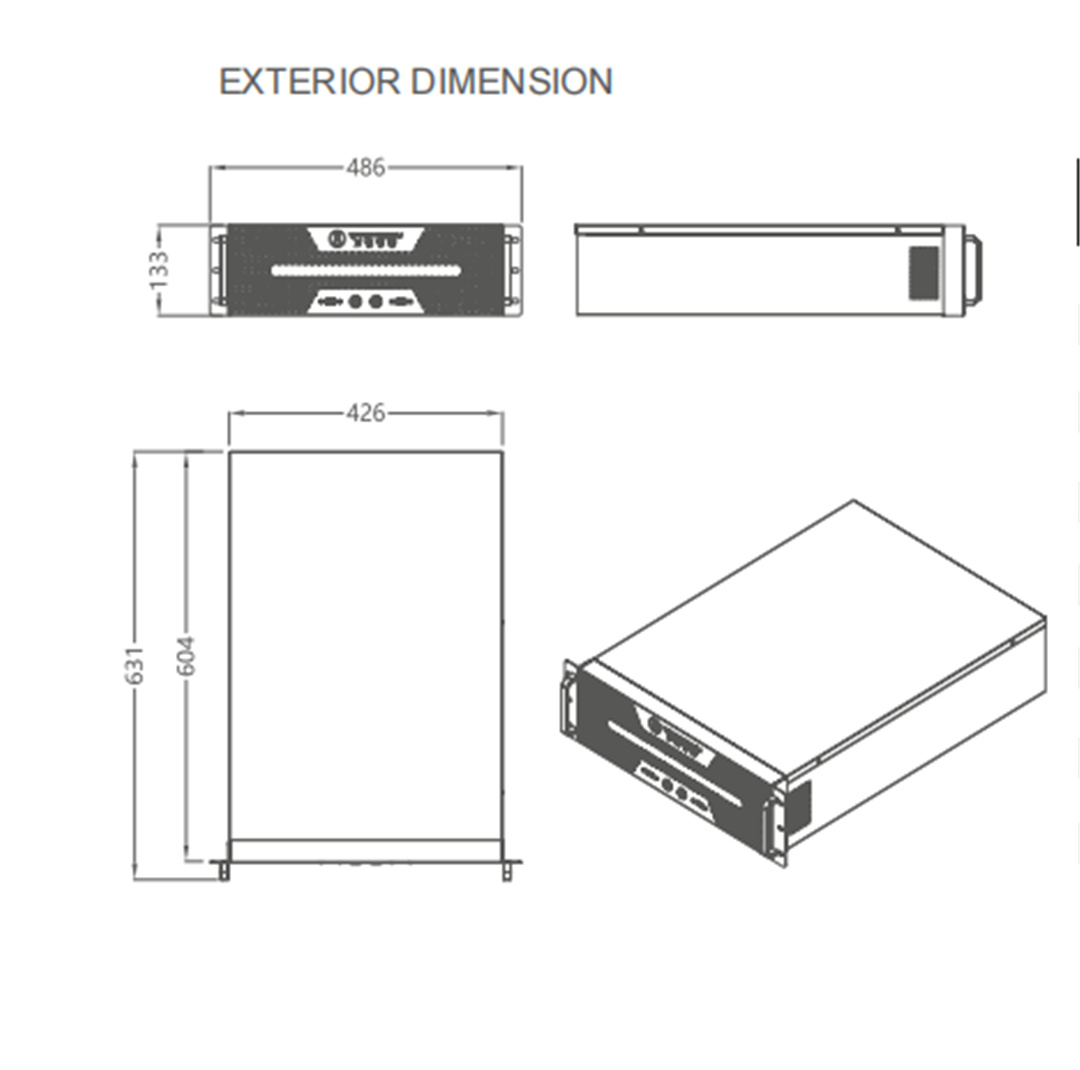

Form Factor

Rackmount 1U

Unit Dimensions

486*133*631

Environmental Tolerance

Temperature:5-35°C(40-95°F)Humidity: 5%-95%(non-condensing)Altitude:0-2700m(0-8850ft)

APPLICATIONS



UNIQUE DESIGN APPEARANCE



PREFERENTIAL PRICE



DOUBLE PROTECTION PRODUCT PACKAGING
