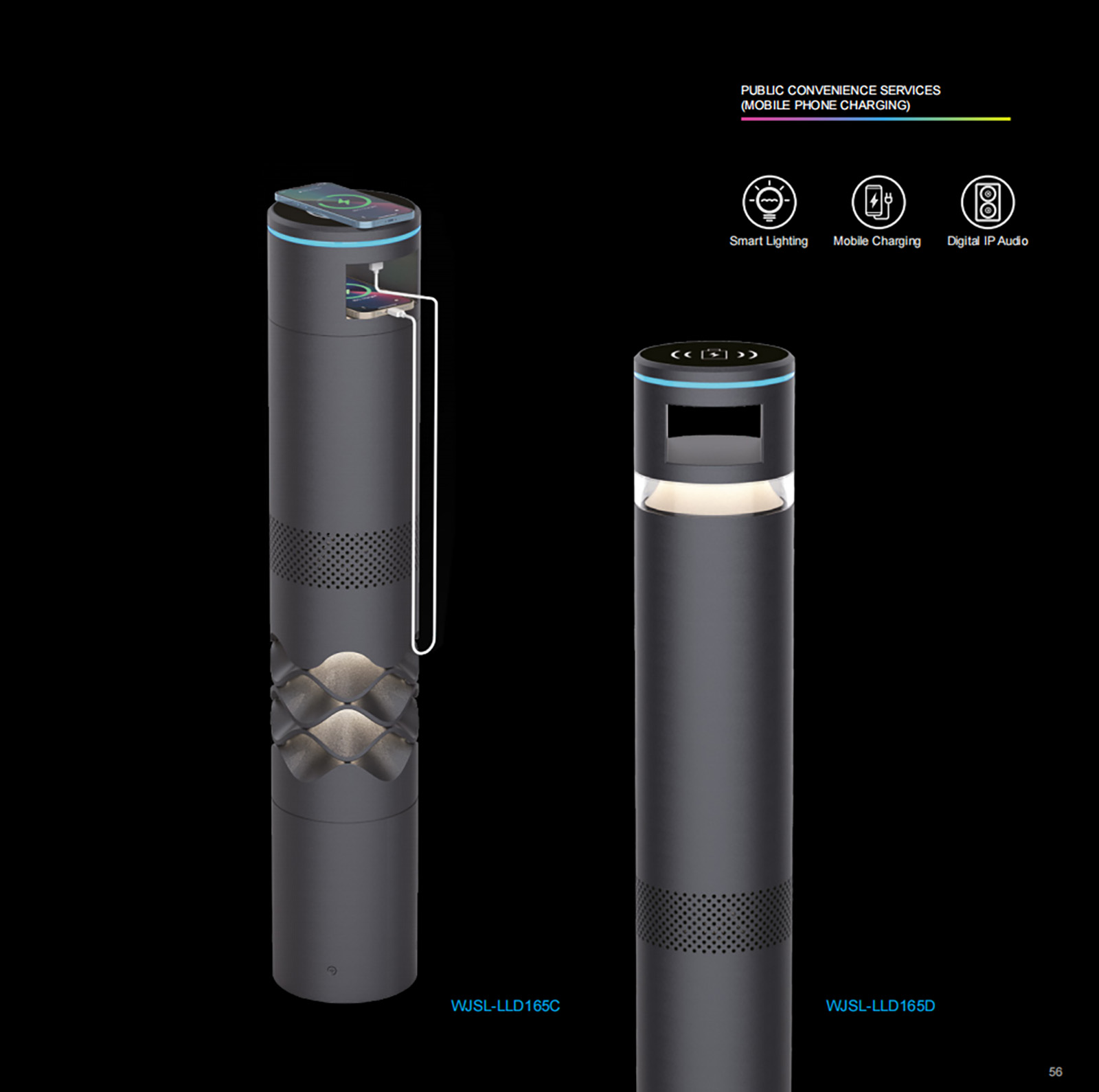

WJSL-LLD165C “LANG CHAO” SERIES SMART BOLLARD LAMP

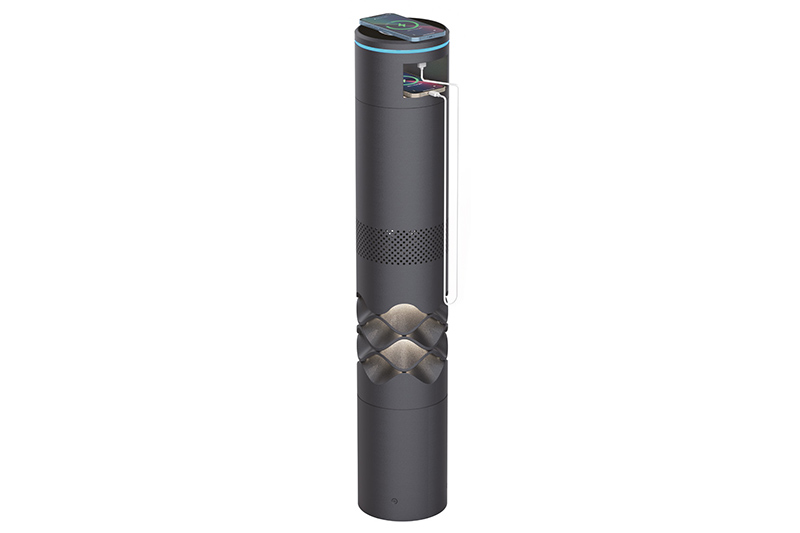

Mobile Charging
● Wireless mobile charging
● Wired charging via USB port

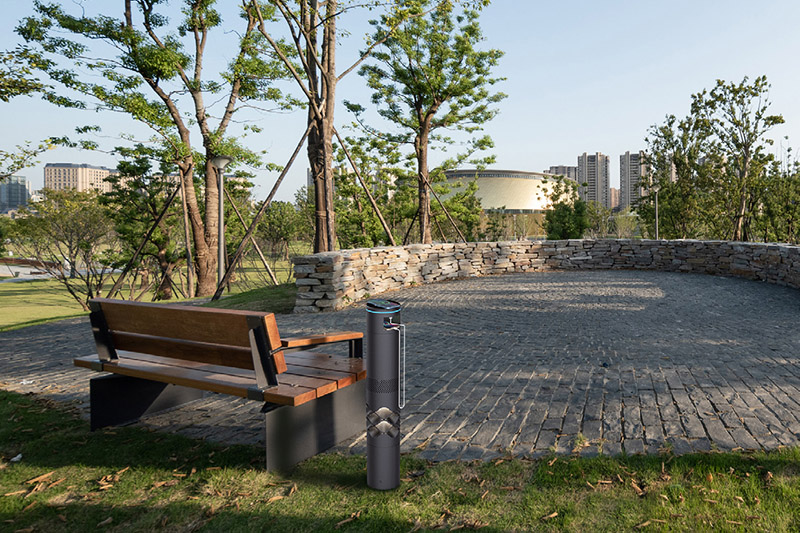

Smart IP Speaker
● Supports multi-speaker synchronous playback or single-point playback
● Speaker unit: 1*4 inch full-range
● Coverage range: radius 20 meters, 360° angle
Product Features
● Application
The "LANG CHAO" series portable mobile charging smart bollard lamp integrates digital IP audio, smart lighting, and other features into a single smart device. It can be used in upscale outdoor spaces including parks, business districts, commercial streets, and smart communities for the development of smart cities.
● Lamp Features
/A wireless mobile phone charging module and a USB interface for wired charging are integrated into the top of the light. According to customer requirements, a personalized charging billing platform can be configured (see page 22 charging service).
/The ambient effect light on the top of the lamp emits 3000K warm light while it is not charging and changes to blue light when it is.
/In order to achieve strong anti-glare performance while maintaining practical lighting, the main lighting uses downward illumination, which focuses light on the ground and prevents direct glare to the eyes.
/In order to fulfill the needs of the general control system and modify color temperature and brightness variations in energy-saving mode, an intelligent control module can be integrated and connected to the smart central control system.
/The lamp features an integrated IP digital audio system, and the volume may be adjusted to suit the needs of the system.
/Installation technique: flange base installation with embedded foundation.
● Main Materials
/Metal tubing makes up the majority of the lamp body. High-precision integrated die casting using aluminum alloy is used for the lamp head and wave-pattern structure. The fasteners are made of 304 stainless steel, and the surface has a premium AkzoNobel silver-gray spray coating that may guarantee no yellowing within five years.
|
Wireless transmission rate |
300Mbps |
|
Wireless network frequency |
2.4G |
|
Signal coverage |
50-100 meters |
|
Maximum users |
32 |
|
Control method |
Ethernet network control, connected to the main system via fiber optic or Cat5e cable |
|
Transmission |
Ethernet RJ45 / 10M / 100M |
|
Lighting color temperature |
single color temperature 2200K-5000K |
|
Color rendering index |
Ra ≥ 80 |
|
Smart audio |
built-in amplifier digital audio, peak power:20W |
|
Speaker unit |
1 * 4-inch full-range (refer to page 24:Network IP Speaker) |
|
Intelligent control |
built-in Intelligent controller, integrated control of lighting and audio |
|
Protection level |
IP65 |
|
Operating voltage |
AC220V |
|
Power |
lighting 15W, audio 20W, others 5W |
