RGBW DMX512 Flood Light for Dynamic Facade Lighting WJTS-176-F45

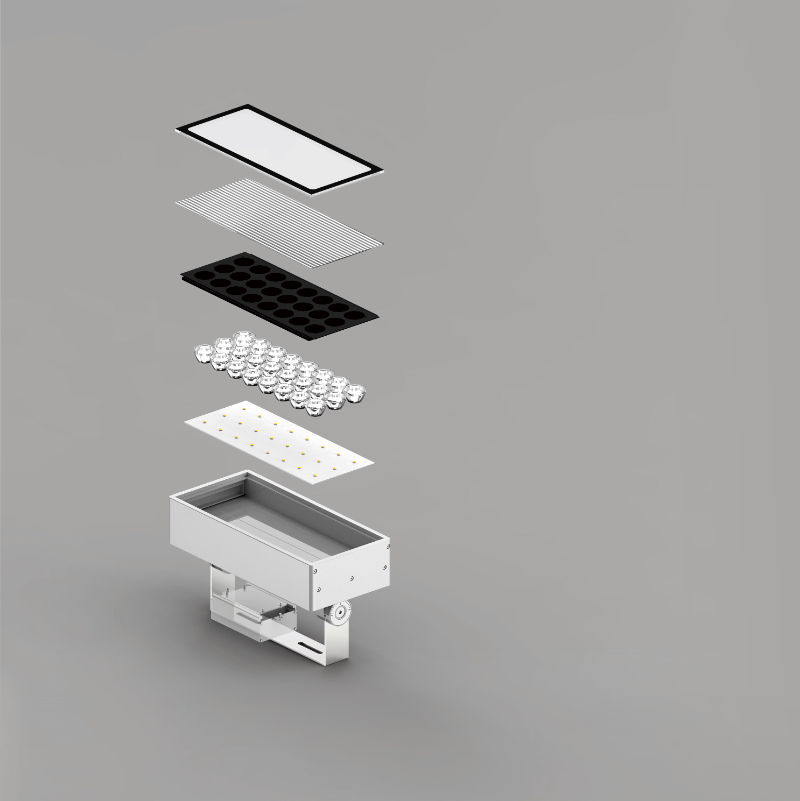

5MM thick ultra-white tempered glass, light
transmittance is more than 93%, strong selfcleaning
Imported micro-structure light distribution parts
(three-time light distribution, applied during specific effect projection), optional diffused light, elliptical light, antiglare, mixed light, soft light and angle deflection Diffuse light series.
The metal fixed plate or anti-glare grille can choose a variety of light control modes according to the application scene of the lamp.
Split type high luminous efficiency large lens
(secondary light distribution), accurate angle.
Imported high-power LED lamp beads (CREE),
reasonable selection according to the angle of the
lamp package mode (one-time light distribution).
Super thermally conductive aluminum substrate
with a thermal conductivity of 2.0.
6063 aluminum radiator, 304 stainless steel screw,
The high-precision lamp body is composed of aluminum alloy end caps, and the surface is treated
with fluorocarbon spraying. Pointing precision stainless steel dial.
Pointing precision stainless steel dial.
Taiwan MEAN WELL highperformance power supply.
304 brushed stainless steel bracket.

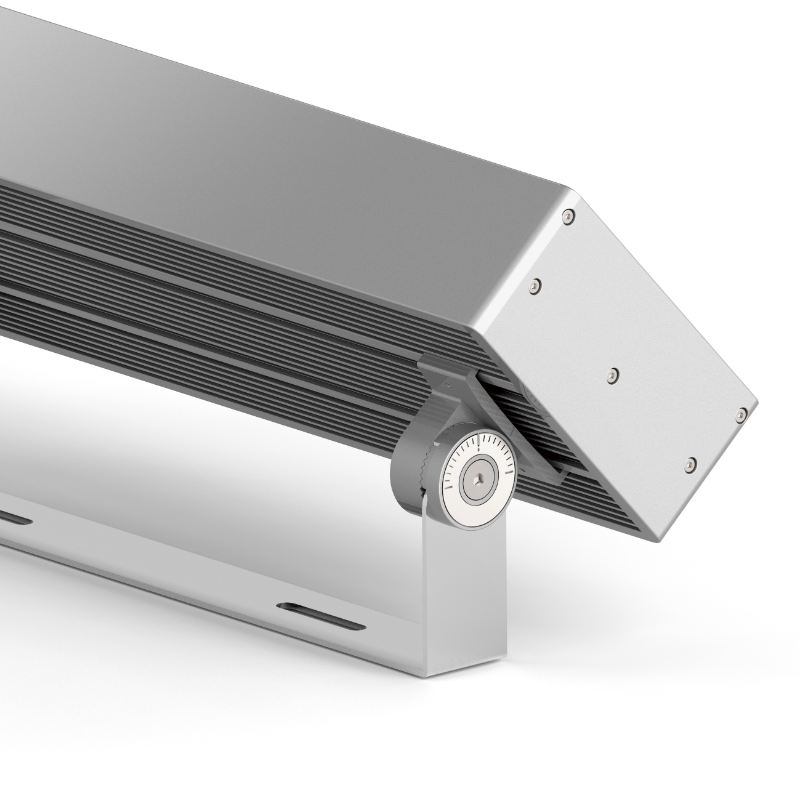

Precisely setting design
The dial with graduations helps to accurately align the lamps. It ensures quick and easy setup,especially for lamps arranged in a row, which can be adjusted to the exact same tilt angle. The 180° adjustable tilt of the luminaire can be precisely adjusted to achieve the best beam alignment, and the light will be irradiated precisely where you need it.
|

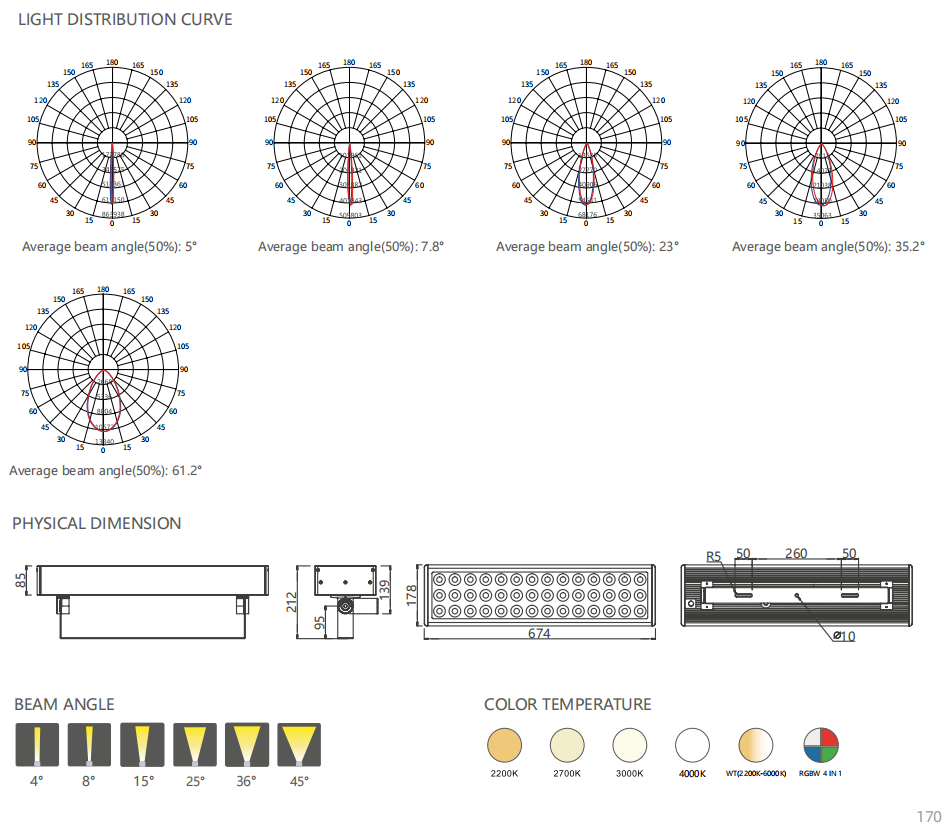

ITEM |
LED CHIP |
POWER/W |
CCT/K |
BEAM ANGLE |
INPUT VOLTAGE/V |
CONTROL METHOD |
|
WJTS-176-180 |
45 |
180W |
2200K/2700K/3000K/4000K |
4° /8° /25° /36° /60° |
AC100-277V |
ON/OFF(SWITCH) |
|
WJTC-176-200 |
45 |
200W |
RGBW 4 IN 1 |
15° /25° /45° |
AC100-277V |
DMX512/RDM |
|
WJTG-176-180 |
45 |
180W |
WT(2200K-6000K) |
4° /8° /25° /36° /60° |
AC100-277V |
DMX512/RDM |
| Remark:Product parameters will be updated with technological progress,and please contact the manufacturer for special needs. | ||||||
|
|
PRODUCT FEATURES
Minimalist shape design, simple and elegant, suitable for outdoor key area lighting and outdoor highbuildings, bridges and etc. Integrated heat dissipation lamp, practical ambient temperature range -20° ~ 60°, electrical safety class III. Lamp body 6063 extruded aluminum profile, thermal conductivity 210W / M * K, excellent heat dissipation effect. End cover Aluminum alloy die-casting, stainless steel screws, aging resistant silicone seal ring. High-efficiency PMMA optical lens, pointing accurately. The lamp body has assemble breath voir to balance the pressure of the lamp cavity at different temperatures. High-strength ultra-white tempered glass, transparent 92% light rate. |
