High power architectural LED flood light for building facade lighting. Available in RGBW, DMX512, narrow beam and 100-277V versions. IP65 aluminum housing for outdoor applications. WJTS-176-F36

High power architectural LED flood light for building facade lighting WJTS-176-F36

Surface treatment: Oxidation and outdoor grade spraying can beselected.

Light source: High-power Cree .

Color rendering index: Ra≥80

Protection level: IP65

Operating voltage: DC24V /AC100-277V

Control method: Switch control / DMX512 /RDM

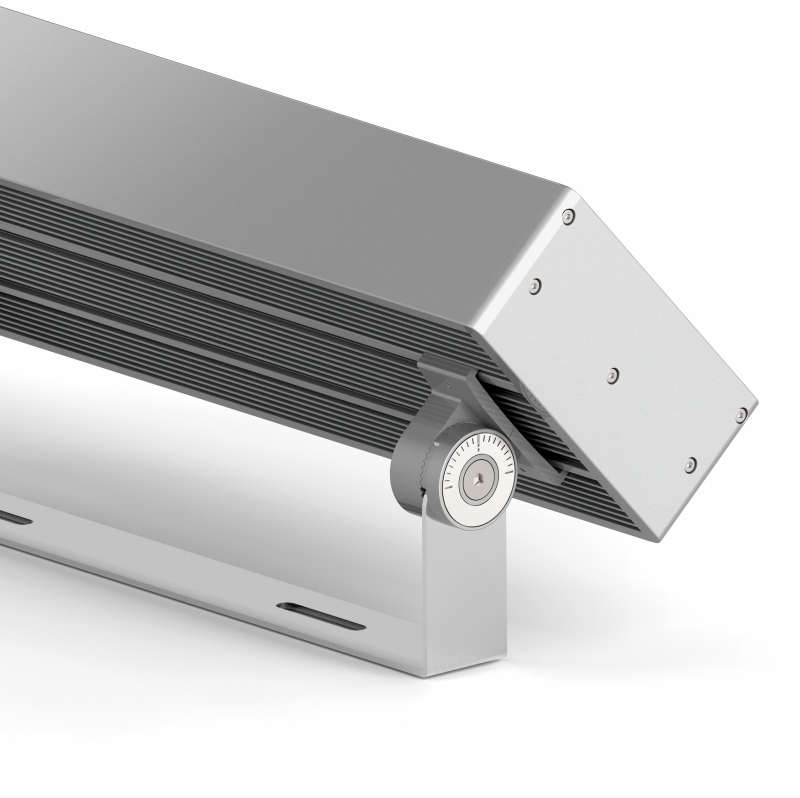

Installation method: 0 ° ~ 90° adjustable angle mounting bracket, can be installed on the ground or wall

Light body color: silver gray/dark gray.

Product Detail

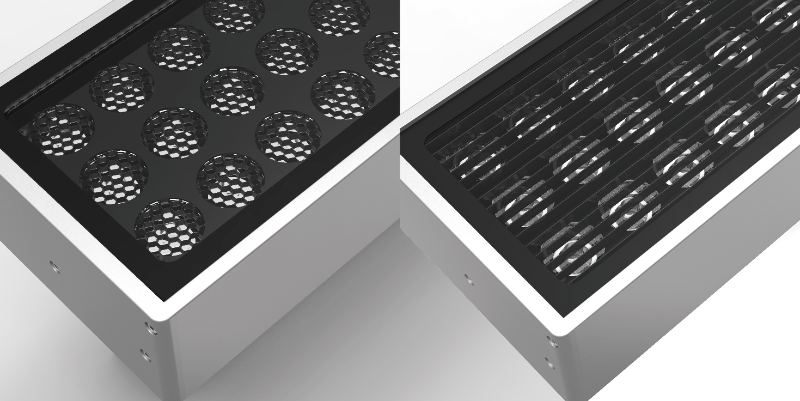

Built-in anti-glare grill 1 (optional)

The honeycomb anti-glare grid used in the

use of the round spot symmetrical angle

projector can effectively avoid glare when

illuminating at a low position.

Built-in anti-glare grill 2 (optional)

The strip-shaped anti-glare grid used when

projecting light at an elliptical spot angle does

not affect the light effect of a large angle, and

has control over the glare of a small angle.

Previous: Outdoor LED Flood Light with Narrow Beam Distribution WJTS-176-F24

Next: RGBW DMX512 Flood Light for Dynamic Facade Lighting WJTS-176-F45

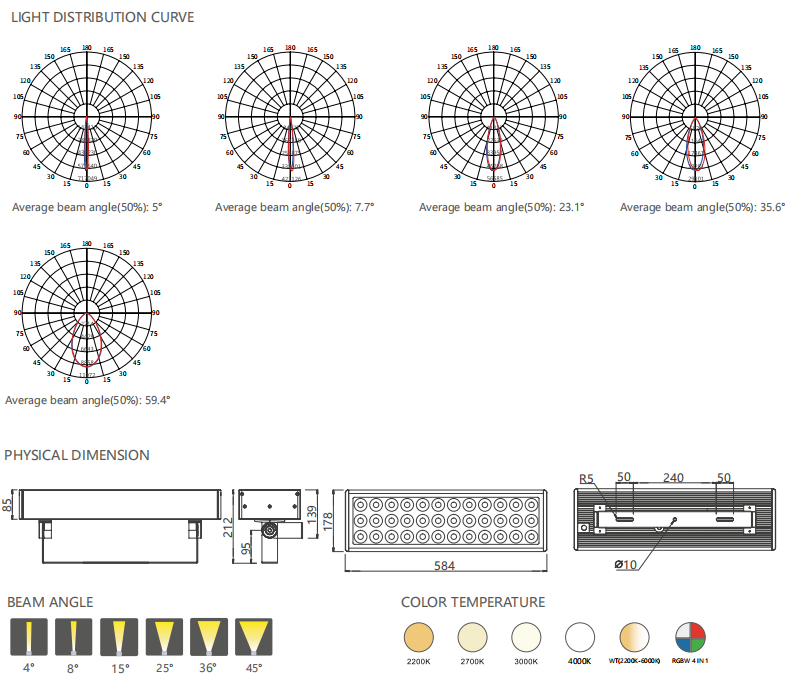

ITEM	LED CHIP	POWER/W	CCT/K	BEAM ANGLE	INPUT VOLTAGE/V	CONTROL METHOD
WJTS-176-144	36	144W	2200K/2700K/3000K/4000K	4° /8° /25° /36° /60°	AC100-277V	ON/OFF(SWITCH)
WJTC-176-160	36	160W	RGBW 4 IN 1	15° /25° /45°	AC100-277V	DMX512/RDM
WJTG-176-144	36	144W	WT(2200K-6000K)	4° /8° /25° /36° /60°	AC100-277V	DMX512/RDM
Remark:Product parameters will be updated with technological progress,and please contact the manufacturer for special needs.

PRODUCT FEATURES

Minimalist shape design, simple and elegant, suitable for outdoor key area lighting and outdoor highbuildings, bridges and etc.

Integrated heat dissipation lamp, practical ambient temperature range -20° ~ 60 °, electrical safety class III.

Lamp body 6063 extruded aluminum profile, thermal conductivity 210W / M * K, excellent heat dissipation effect.

End cover Aluminum alloy die-casting, stainless steel screws, aging resistant silicone seal ring.

High-efficiency PMMA optical lens, pointing accurately.

The lamp body has assemble breath voir to balance the

pressure of the lamp cavity at different temperatures.

High-strength ultra-white tempered glass, transparent 92% light rate.
