WJTS-IPA90″ SHUISHI” SERIES Architectural Landscape Lighting Pole with Multiple Heads Outdoor Garden lllumination

WJTS-IPA90 “SHUI SHI” SERIES  ROUND FLOODLIGHT POLE TYPE A CIRCULAR LED FLOOD LIGHT

Being used as urban lighting system, long-distance building  lighting, park tree lighting and square lighting.

360° left and right adjustable angle of the lamp , and 120° up  and down adjustable angle of the lamp .

The pole is made of 3MM thick galvanized pipe surface spray  treatment, the pole diameter is 90mm, and all screws are made  of stainless steel.

The embedded parts of the light pole can be provided by the  factory or made locally.

Choose the appropriate light angle according to the application,  and contact the manufacturer for technical communication for  special applications.


Product Detail

PRODUCT PARAMETERS

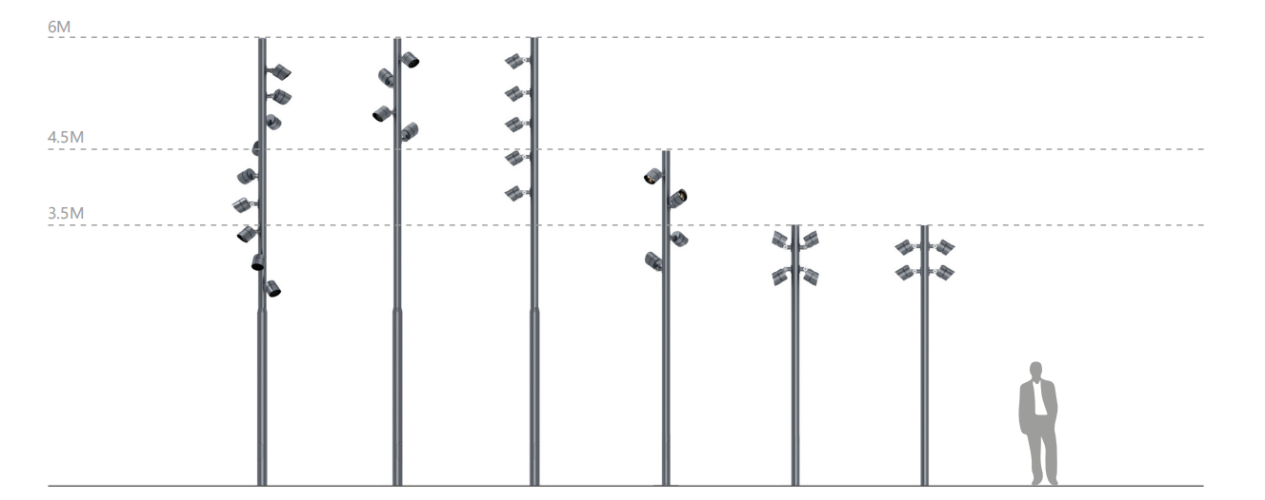

WJTS-IPA90-x (2)

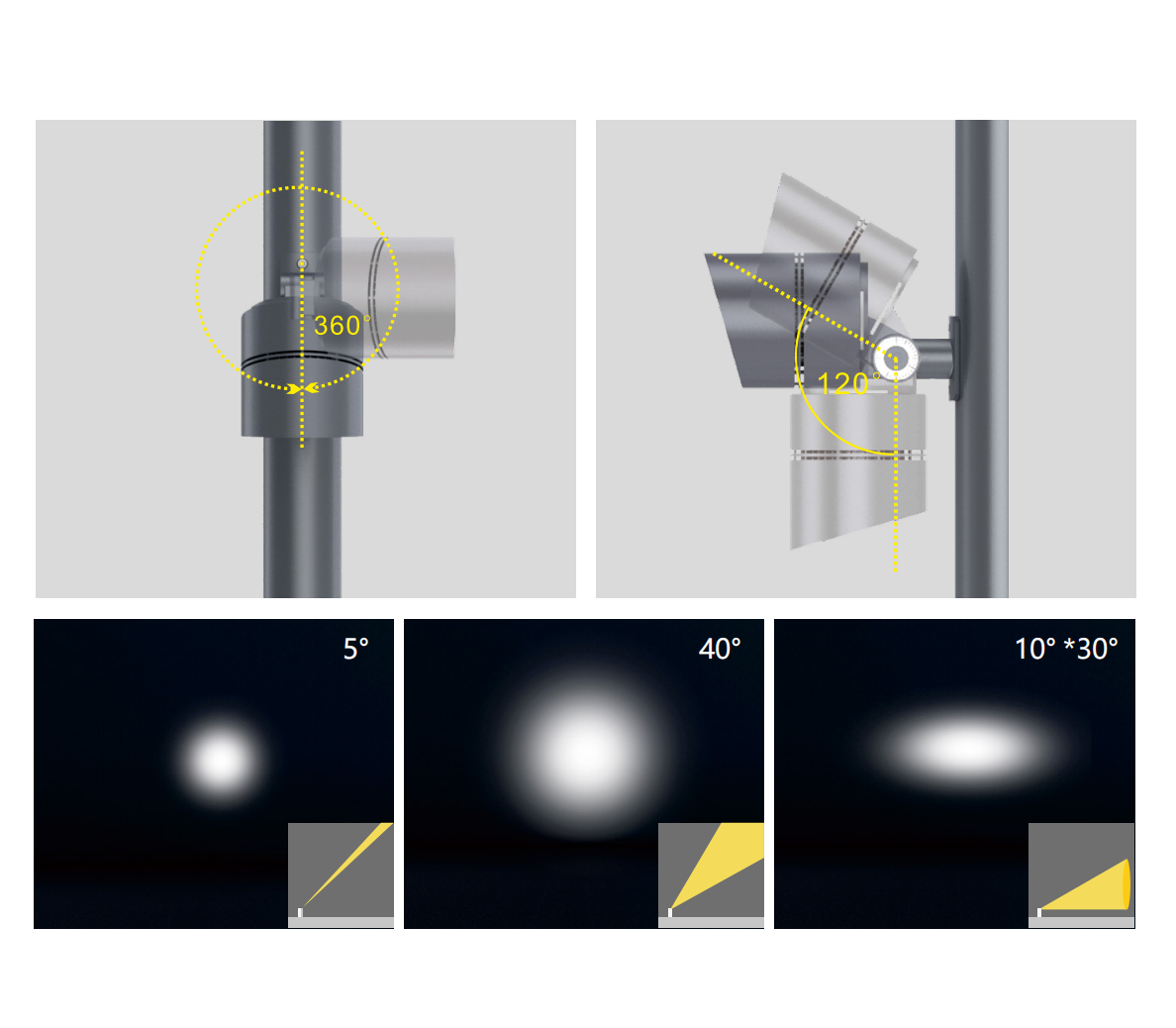

Precisely set angle adjustment

The light output of the lamp can be selected from a variety of angles, the minimum angle is 5°, and the maximum angle is 40°. According to the illuminated object and improve application efficiency, it can provide 10°*30° dual-angle light distribution.


  • Previous:
  • Next:

  • WJTS-IPA90-x (3) PRODUCT FEATURES“Shuishi” series of PROJECTOR LIGHT are suitable for garden landscape and building lighting. The product adopts modern minimalist design techniques, and the appearance is perfectly designed on the premise of satisfying practical functions./ The circular outer cover of the lamp is a glare control with excellent visual comfort, which can change the light distribution direction of the lamp and  adjust the glare cover according to the visual needs of the human eye.

    / In the case of strong anti-glare (such as park applications), you can choose the built-in anti-glare grid device to cooperate with the rotating

    anti-glare cover to achieve the perfect anti-glare treatment effect.

    / In the case of ensuring the appearance of consistent design, full consideration of the heat dissipation capacity, using chimney-type wind

    driven heat dissipation effect design, scientific heat dissipation.

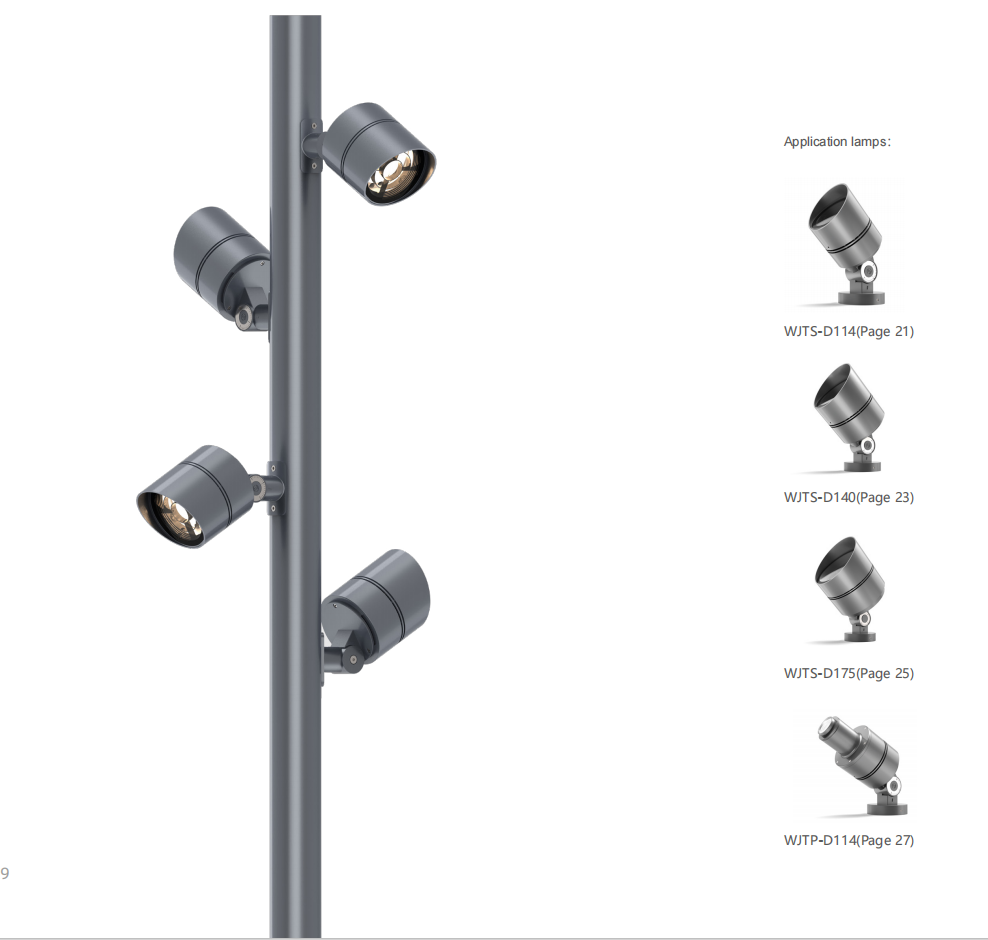

    Application lamps:

    WJTS-D114

    WJTS-D140

    WJTS-D175

    WJTP-D114

    WJTS-IPA90-x (1)
