Outdoor LED Flood Light with Narrow Beam Distribution WJTS-176-F24
About angle design

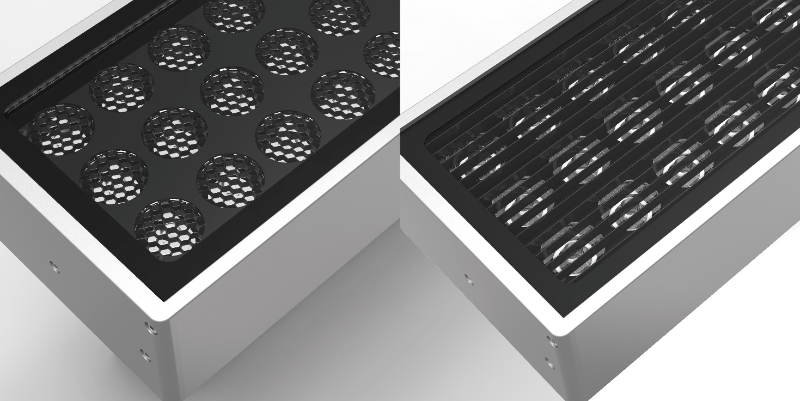

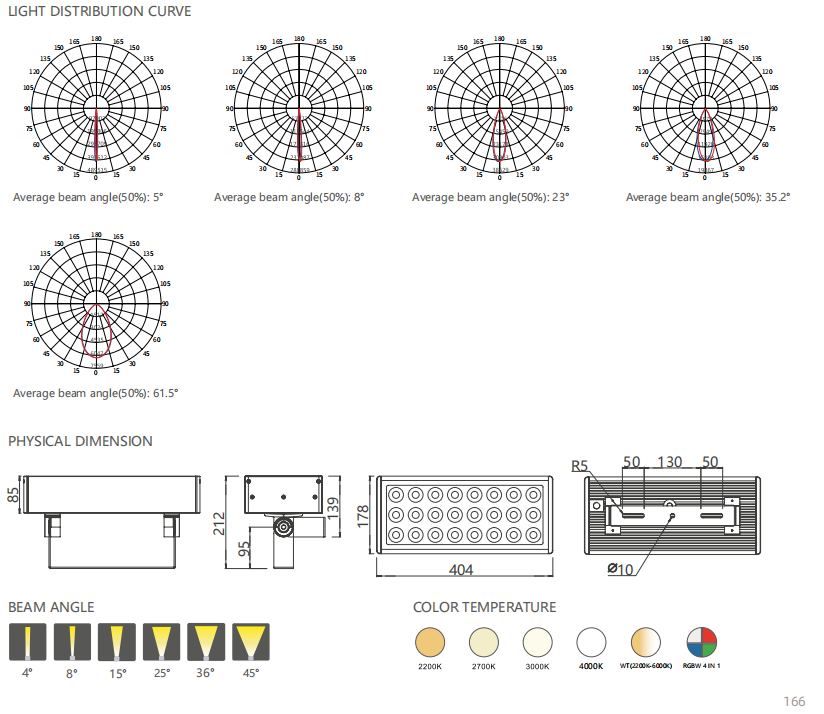

The wide-angle or narrow-angle lens can adjust the light distribution to suit the corresponding lighting project, and there is an optional angle of 3° to 45°. The narrow angle is used for long-distance precise illumination, and the wide angle is used for the flexibility of surface area and space area. Flood lighting. The elliptical beam angle of 10°x 30° produces an axially symmetric light distribution with flooding characteristics, and its minimum angle can reach 3°x40° through the third optical distribution.
PRODUCT ADVANTAGES

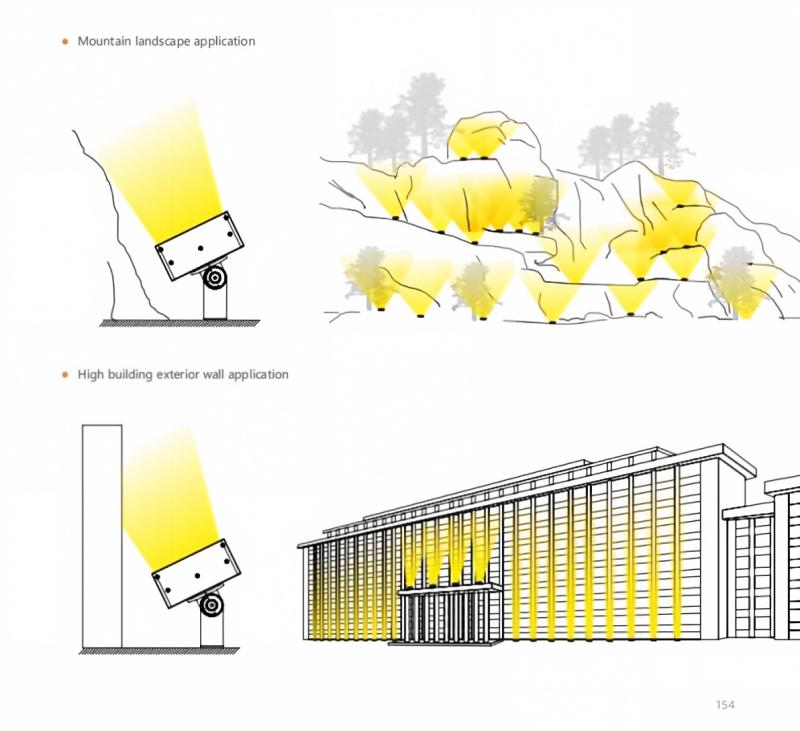

Mountain landscape application

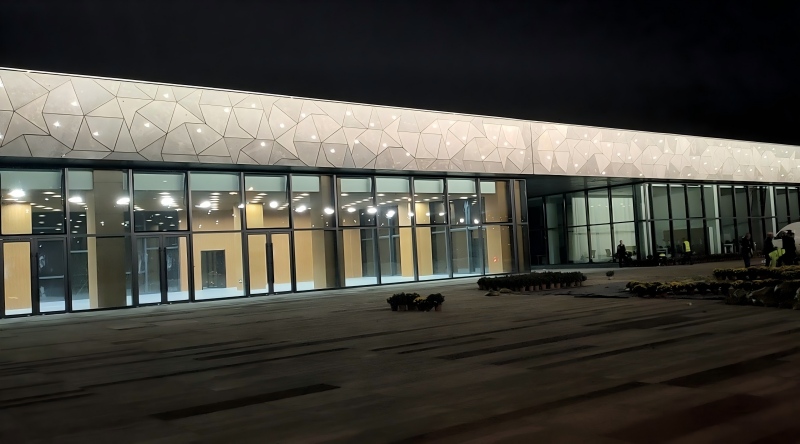

High building exterior wall application
|
ITEM |
LED CHIP |
POWER/W |
CCT/K |
BEAM ANGLE |
INPUT VOLTAGE/V |
CONTROL METHOD |
|
WJTS-176-96 |
24 |
96W | 2200K/2700K/3000K/4000K | 4° /8° /25° /36° /60° | DC24V/AC100-277V | ON/OFF(SWITCH) |
|
WJTC-176-120 |
24 |
120W |
RGBW 4 IN 1 |
15° /25° /45° |
DC24V/AC100-277V |
DMX512/RDM |
| WJTG-176-96 |
24 |
96W | WT(2200K-6000K) | 4° /8° /25° /36° /60° | DC24V/AC100-277V |
DMX512/RDM |
| Remark:Product parameters will be updated with technological progress,and please contact the manufacturer for special needs. | ||||||
|
|
PRODUCT FEATURES
Minimalist shape design, simple and elegant, suitable for outdoor key area lighting and outdoor highbuildings, bridges and etc. Integrated heat dissipation lamp, practical ambient temperature range -20° ~ 60°, electrical safety class III. Lamp body 6063 extruded aluminum profile, thermal conductivity 210W / M * K, excellent heat dissipation effect. End cover Aluminum alloy die-casting, stainless steel screws, aging resistant silicone seal ring. High-efficiency PMMA optical lens, pointing accurately. The lamp body has assemble breath voir to balance the pressure of the lamp cavity at different temperatures. High-strength ultra-white tempered glass, transparent 92% light rate. |
